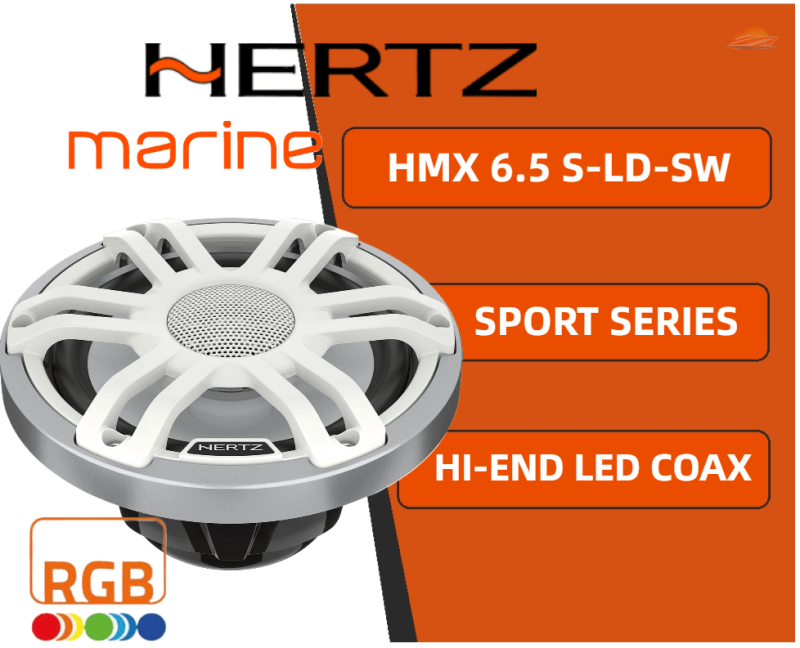

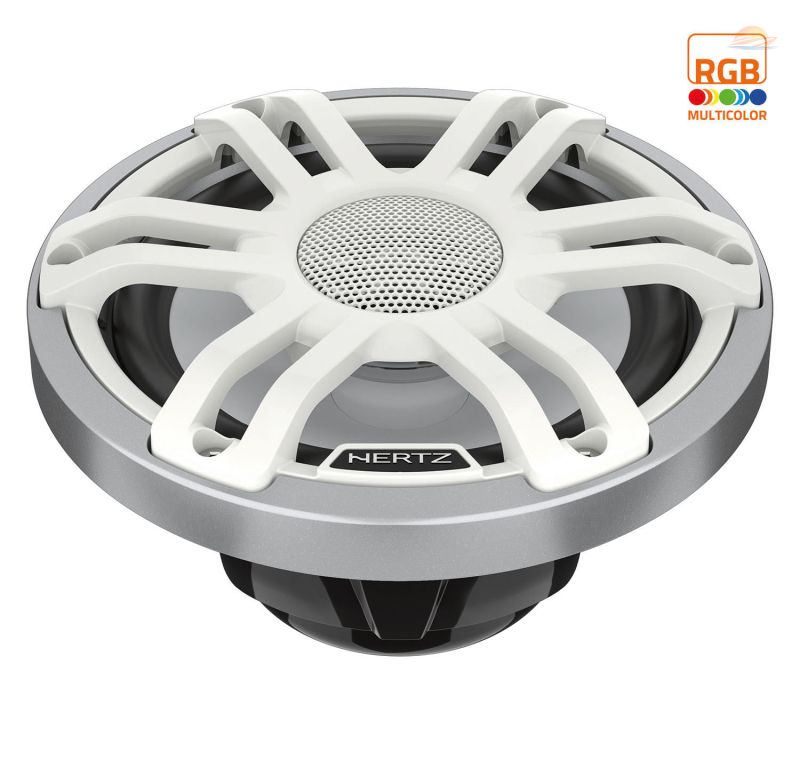

HMX 6.5 S-LD-SW 6.5"4Ohm SPORTS COAX RGB LED SL-WH
Price:
€332.40
-
Code:78040316
-
Weight:3.600 Kgs
Hertz Pure Marine Certified Product stamp featuring the IP65 protection grade, ASTM-D4329 standards for UV resistance and ASTM-B117 for salt fog operability.
1.4” Neodymium magnet tweeter featuring a PEI material dome combined with faceplate and acoustic lens optimized for best off-axis dispersion and highest SPL.
Sound-transparent sport grille providing efficient high-frequency transfer, eye-catching look, and rock-solid protection.
Long-throw 25mm (1”) voice coil woofer fine-tuned for infinite baffle applications.
Sealed built-in crossover with resettable solid-state tweeter protection circuit.
Gold-plated corrosion-resistant terminals.
1.4” Neodymium magnet tweeter featuring a PEI material dome combined with faceplate and acoustic lens optimized for best off-axis dispersion and highest SPL.
Sound-transparent sport grille providing efficient high-frequency transfer, eye-catching look, and rock-solid protection.
Long-throw 25mm (1”) voice coil woofer fine-tuned for infinite baffle applications.
Sealed built-in crossover with resettable solid-state tweeter protection circuit.
Gold-plated corrosion-resistant terminals.
Estimated Shipping
to Veliko Tarnovo starts at
€2.32
outside Veliko Tarnovo starts at
€2.38
Quick Buy
Just 4 fields to fill in
| Component | HI-END LED COAX |
| Size mm (in.) | 165 (6.5) |
| Power Handling - Continuous W | 75 |
| Power Handling - Peak W | 150 |
| Impedance Ohm | 4 |
| Depth mm (in.) | 95,6 (3.76) |
| Tweeter diaphragm mm (in.) | 36 (1.4) |
| Woofer Voice Coil Ø mm (in.) | 25 (1) |
| Tweeter Voice Coil Ø mm (in.) | 20 (0.8) |
| Frequency Response Hz | 50 ÷ 25k |
| Woofer Magnet size D x d x h mm (in.) | 78,5 x 32 x 17 (3.09 x 1.26 x 0.67) |
| Tweeter Magnet size D x h mm (in.) | 19,7 x 3 (0.78 x 0.12) |
| Weight of one speaker kg (lb.) | 1 (2.2) |
| Woofer Magnet | High density flux ferrite |
| Tweeter Magnet | Neodymium |
| Cone | Polypropylene with UV inhibitors |
| Dome | PEI |
| Xmech mm (in.) | ±6,65 (0.26) |
Physical Specs
| A | 172,2 mm | 6.78 in. |
| B | 128 mm | 5.04 in. |
| C | 95,6 mm | 3.76 in. |
| D | 69 mm | 2.72 in. |
| F | 26,6 mm | 1.05 in. |
| File | Info |
|---|---|
Hertz_Marine_HMX_6_5_LD_TW_TC
|
[PDF, 808.22 KB] |
