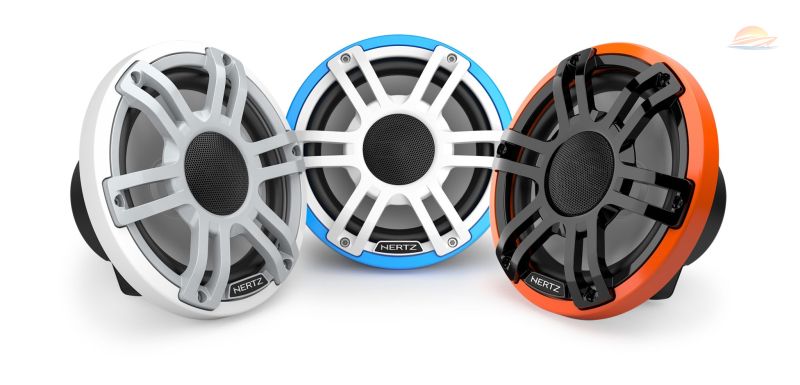

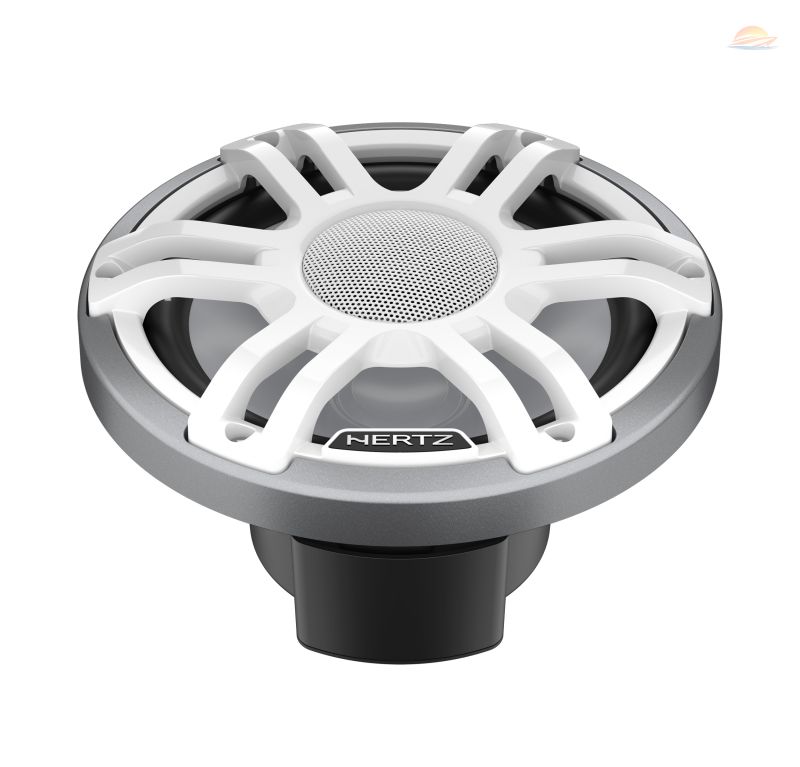

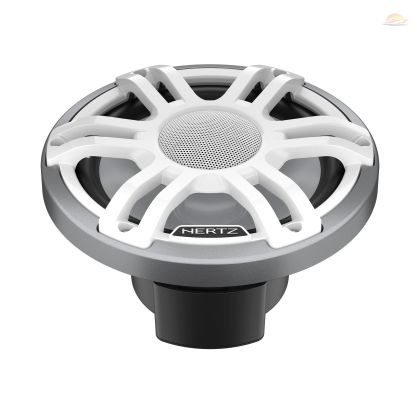

HMX 7.7 S-LD-SW 7.7" 4 Ohm SPORTS COAX RGB LED SL-WH
Price:
€394.80
-
Code:78040328
-
Weight:4.000 Kgs
196 (7.7) mm (in.) |
Estimated Shipping
to Veliko Tarnovo starts at
€2.32
outside Veliko Tarnovo starts at
€2.38
Quick Buy
Just 4 fields to fill in
| Component | HI-END LED COAX |
| Size mm (in.) | 196 (7.7) |
| Power Handling - Continuous W | 100 |
| Power Handling - Peak W | 200 |
| Impedance Ohm | 4 |
| Depth mm (in.) | 113 (4.4) |
| Tweeter diaphragm mm (in.) | 36 (1.4) |
| Woofer Voice Coil Ø mm (in.) | 32 (1.26) |
| Tweeter Voice Coil Ø mm (in.) | 20 (0.8) |
| Frequency Response Hz | 45 ÷ 25k |
| Woofer Magnet size D x d x h mm (in.) | 90 x 40 x 20 (3.54 x 1.57 x 0.79) |
| Tweeter Magnet size D x h mm (in.) | 19,7 x 3 (0.78 x 0.12) |
| Weight of one speaker kg (lb.) | 1,66 (3.66) |
| Woofer Magnet | High density flux ferrite |
| Tweeter Magnet | Neodymium |
| Cone | Polypropylene with UV inhibitors |
| Dome | PEI |
| Xmech mm (in.) | ±8,5 (0.33) |
Physical Specs
| A | 196 mm | 7.7 in. |
| B | 158 mm | 6.2 in. |
| C | 113 mm | 4.4 in |
| D | 79 mm | 3.1 in. |
| F | 34 mm | 1.3 in. |
