HMP 1D - MARINE&POWERSPORTS D-CLASS MONO AMPLIFIER

Unleash powerful bass in your marine or powersports environment with the HMP 1D D-Class Mono Amplifier. Engineered for exceptional performance and durability, this amplifier delivers impressive power and precise sound control, ensuring your audio experience is nothing short of spectacular.

Key Features

• High Power Output: Delivers 150W x 1 @ 4Ω and 250W x 1 @ 2Ω (RMS at 14.4 VDC, THD 1%), providing ample power for your subwoofers.
• D-Class Technology: Ensures high efficiency and minimal heat generation, allowing for extended playtime without compromising performance.

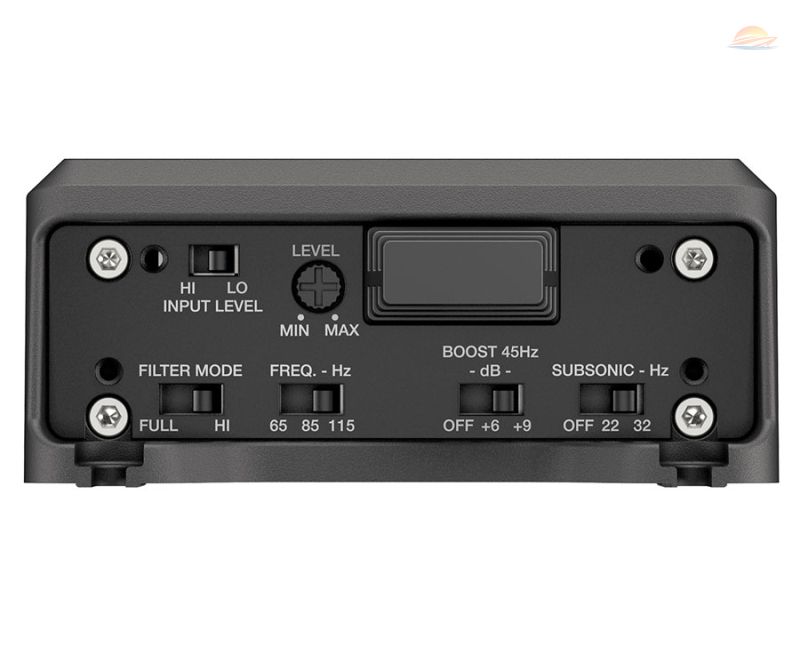

• Adjustable Crossovers: Fine-tune your audio with precision using the adjustable low-pass filter (65-85-115 Hz @ 12 dB/Oct.) and subsonic filter (Off - 22 - 32 Hz @ 12 dB/Oct.).
• Bass Boost: Enhance low-end frequencies with selectable boost options (Off / +6 / +9 dB @ 50 Hz), adding depth and impact to your bass.
• Automatic Remote Turn-On/Off (ART): Simplifies installation and operation, automatically turning the amplifier on/off with the audio signal.
• Remote Volume Control: Included remote volume control allows you to conveniently adjust the bass level from the driver's seat (-50 ÷ 6 dB).

Detailed Specifications

General:

• Channels: 1
• Power Supply Voltage: 11-15 VDC
• Fuse: 1 x 15 A
• Idling Current: 1 A (Power ON) / 0.04 mA (Power OFF)
• Consumption @ 2Ω, 14.4 VDC (Max Musical Power): 15 A
• Remote In: 4-15 VDC - 1 mA

Amplifier Stage:

• THD (100 Hz @ 4Ω): 0.1%
• Bandwidth: 10-500 Hz
• S/N Ratio (A weighted @ 1 V): 105 dB
• Damping Factor (100 Hz @ 4Ω): 300
• Pre-In Sensitivity: LO: 0.2-5 V / HI: 0.8-20 V
• Minimum Load Impedance: 2Ω

Output Power:

• RMS Power @ 14.4 VDC, THD 1%: 150W x 1 (4Ω) / 250W x 1 (2Ω)
• RMS Power @ 14.4 VDC, THD 10%: 180W x 1 (4Ω) / 300W x 1 (2Ω)
• Total Power: 300W

Inputs/Filters:

• Inputs: PRE IN
• Full Filters: Yes
• Low-Pass Filter: 65-85-115 Hz @ 12 dB/Oct.
• Subsonic Filter: Off - 22 - 32 Hz @ 12 dB/Oct.
• Bass Boost: Off / +6 / +9 dB @ 50 Hz

Physical:

• Dimensions: 223 x 100.5 x 43.6 mm / 8.77 x 3.95 x 1.70 in
• Weight: 1.35 kg / 2.97 lb

Robust Design:

With dimensions of just 223 x 100.5 x 43.6 mm and a weight of 1.35 kg, the HMP 1D is compact yet powerful, making it easy to integrate into various setups. Its robust construction ensures it can withstand the rigors of marine and powersports environments, delivering reliable performance every time.

Upgrade your audio system with the HMP 1D D-Class Mono Amplifier and experience the difference in power, clarity, and control. Perfect for boats, ATVs, UTVs, and more, this amplifier is your gateway to exceptional sound quality on the go.
