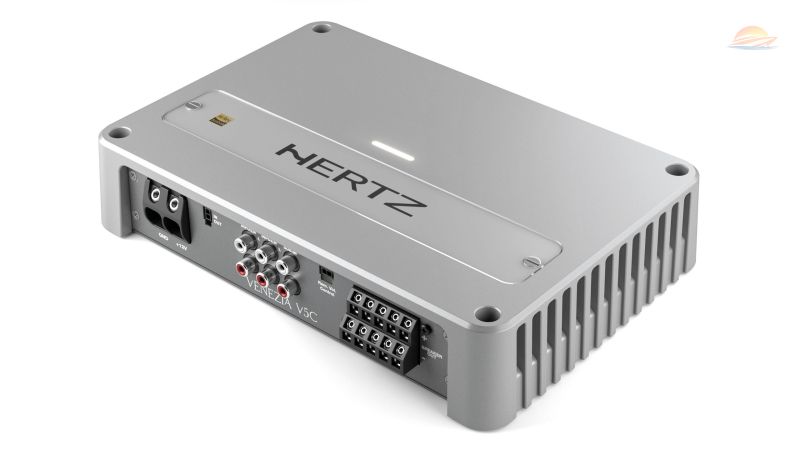

VENEZIA V5C

Unleash the ultimate audio experience on the water with the VENEZIA V5C MARINE 5-Channel Amplifier. This powerhouse is meticulously engineered to deliver crystal-clear, high-fidelity sound, ensuring every note and beat resonates with unparalleled clarity, even amidst the challenges of the marine environment. Whether you're cruising the coastline or anchored in a tranquil bay, the VENEZIA V5C will transform your boat into a floating concert hall.

Key Features and Benefits

Versatile 5-Channel Configuration:

The VENEZIA V5C offers a flexible 5-channel design that can be configured to suit a variety of audio setups. In a 5-channel setup, it delivers 80W x 4 (4Ω) + 330W x 1 (4Ω) or 115W x 4 (2Ω) + 550W x 1 (2Ω), perfect for powering four speakers and a dedicated subwoofer. Alternatively, bridge channels to create a potent 3-channel system with 230W x 2 (4Ω) + 330W x 1 (4Ω) or 230W x 2 (4Ω) + 550W x 1 (2Ω), ideal for driving high-performance components. With a total power output of 1010W, this amplifier ensures your music is heard loud and clear.

Superior Audio Performance:

Experience pristine sound quality with an incredibly low Total Harmonic Distortion (THD) of <0.05% at 100Hz @ 4Ω. The wide bandwidth of 10 ÷ 42 kHz ensures accurate reproduction of the entire audio spectrum, from deep bass to crisp highs. A high Signal-to-Noise Ratio (S/N Ratio) of 100 dB (A weighted @ 1V) guarantees minimal background noise, allowing you to immerse yourself in pure, unadulterated sound. The damping factor of >130 at 100Hz @ 4Ω provides exceptional control over your speakers, resulting in tight, accurate bass response.

Advanced Filtering and Crossover Options:

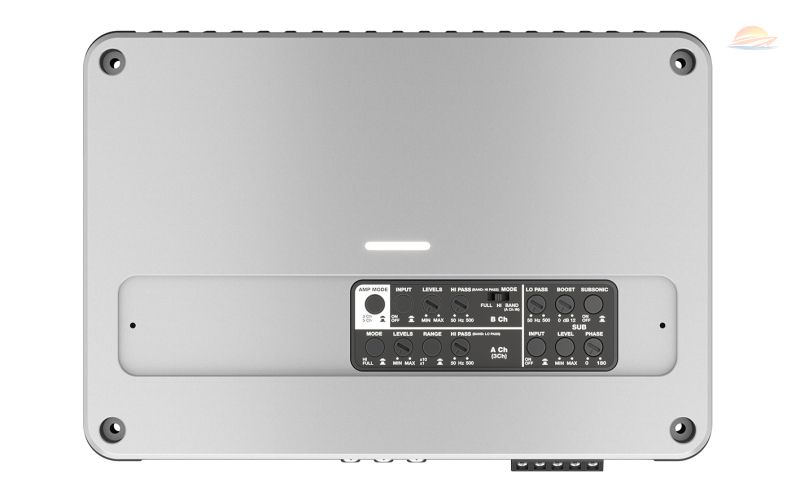

Fine-tune your audio system with the VENEZIA V5C's comprehensive filtering options. The A and B channels feature adjustable high-pass filters ranging from 50 ÷ 500 Hz / 500 Hz ÷ 5 kHz @ 12 dB/Oct, allowing you to optimize the frequency response of your speakers. The dedicated subwoofer channel includes a low-pass filter adjustable from 50 ÷ 250 Hz @ 24 dB/Oct, a phase adjustment of 0 ÷ 180°, a subsonic filter at 25 Hz @ 24 dB/Oct, and a bass boost at 50 Hz adjustable from 0 ÷ 12 dB. These features enable precise control over your subwoofer's performance, ensuring deep, impactful bass.

Robust and Reliable Power Supply:

The VENEZIA V5C is equipped with a robust power supply designed to operate within a voltage range of 9 ÷ 16 VDC. With an idling current of just 1.7 A (power ON) / 0.05 mA (power OFF), this amplifier is energy-efficient. It can handle a consumption of up to 47 A at 14.4 VDC (Max Musical Power) at 1Ω. The remote input operates at 7 ÷ 15 VDC - 1 mA, ensuring reliable remote turn-on functionality.

Compact and Lightweight Design:

Despite its powerful performance, the VENEZIA V5C boasts a compact and lightweight design, making it easy to install in various locations on your boat. Weighing just 3.72 kg / 8.2 lbs, it won't add unnecessary weight to your vessel. The physical dimensions (A: 270 mm/10.6 in, B: 240 mm/9.44 in, C: 185 mm/7.2 in, D: 155 mm/6.1 in, E: 54 mm/2.12 in) ensure it can fit seamlessly into your existing setup.

Key Features:

• 1010W Total Power: High power output for exceptional audio performance.
• Adjustable Crossovers: Fine-tune your audio system for optimal sound quality.
• Low THD: <0.05% for crystal-clear sound reproduction.
• Versatile Configuration: Operates in 5-channel or 3-channel mode.
• Compact Design: Easy to install in various boat locations.
