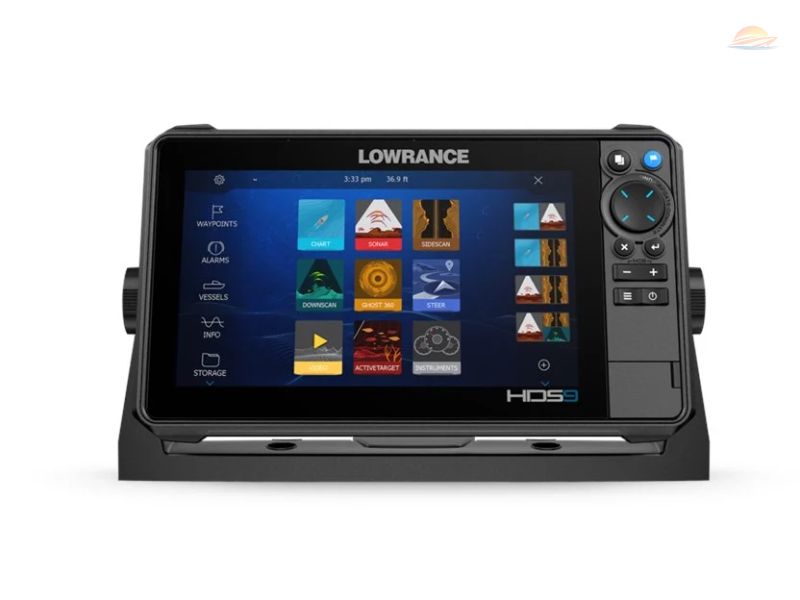

HDS PRO 12. No Transducer

Step up your fishing game with the all-new HDS PRO 12 fishfinder/chartplotter! Designed to help you see more and catch more, this powerful device brings cutting-edge technology to your fingertips. (Transducer sold separately.)

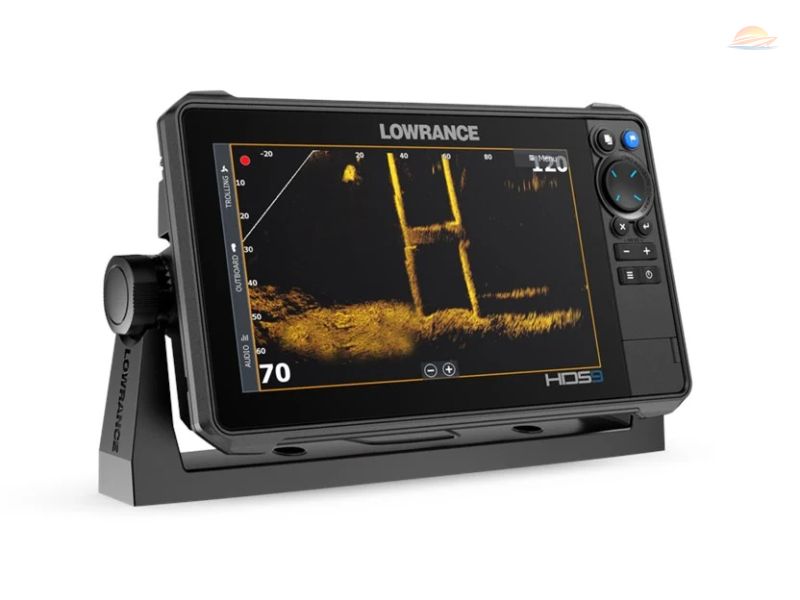

Live Sonar Technology

Experience fishing like never before with the new, high-resolution ActiveTarget® 2 Live Sonar. Watch fish react to your lure in real-time, allowing you to adjust your technique and strategy for maximum success.

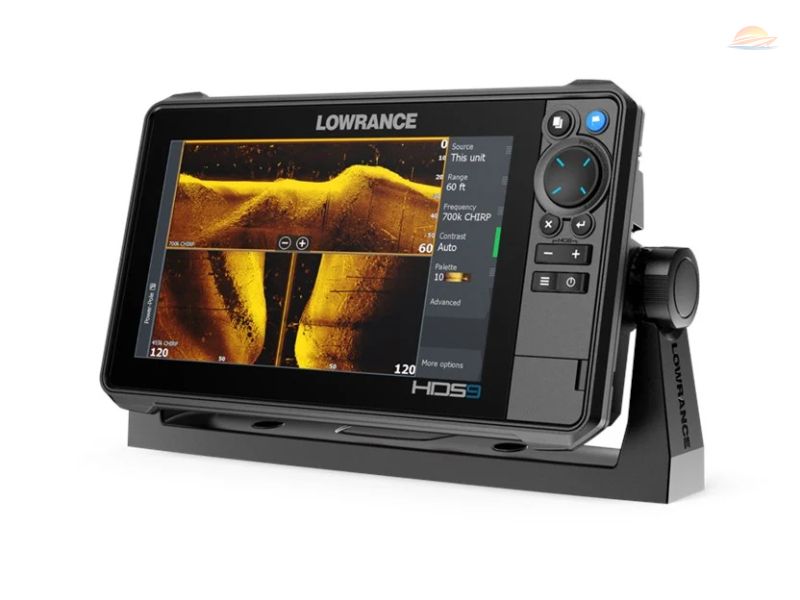

Ultra High-Definition Imaging

Find fish and holding structure with incredible clarity using the new, ultra high-definition Active Imaging™ HD. This advanced imaging technology provides detailed views of the underwater environment, helping you locate the best fishing spots quickly and efficiently.

Advanced Charting

Quickly locate prime fishing areas with the latest and most detailed C-MAP® charts. These charts provide comprehensive information, ensuring you spend less time searching and more time fishing.

Full Fishing System Networking

Enjoy seamless integration with your entire fishing system. The HDS PRO 12 offers expanded boat control from bow to stern, allowing you to manage and monitor your entire setup with ease.

Key Features:

• ActiveTarget® 2 Live Sonar: Watch fish react to your lure live.
• Active Imaging™ HD: Ultra high-definition imaging for finding fish and structure.
• C-MAP® Charts: Latest and most detailed charts for quick fishing area location.
• Full Fishing System Networking: Expanded boat control from bow to stern.
• High-Resolution Display: 1280 x 800 resolution with >1200 Nits brightness.
• Integrated Connectivity: Bluetooth 4.0 and Wi-Fi (802.11b/g/n) for seamless connections.
• NMEA 2000 Support: Comprehensive network compatibility.
• Internal GPS: 10 Hz GPS/GLONASS with WAAS/EGNOS/MSAS for accurate positioning.
• Internal Storage: 8.0 GB for storing waypoints, routes, and tracks.
• Touchscreen Interface: Full Multi-touch touchscreen with 8-way directional keypad.

Detailed Specifications:

Display:

• Backlight Color: Pure White LED
• Display Resolution: 1280 x 800
• Screen Brightness: >1200 Nits
• Viewing Angles: 80° top/bottom, 80° left/right

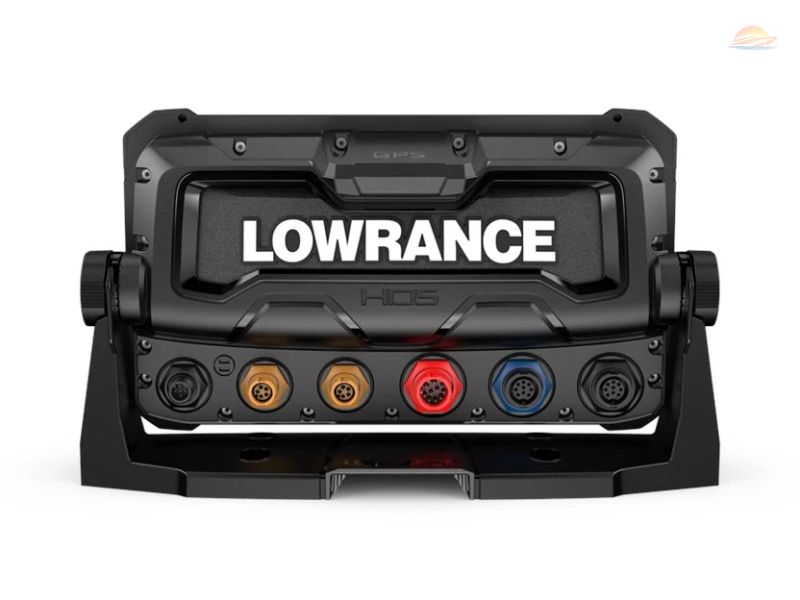

Connectivity:

• Bluetooth: Integrated Bluetooth 4.0 with support for Bluetooth Classic
• Ethernet Ports: 2 x 100 Mbit, 6 max MFD's on a network
• Wi-Fi: Internal 802.11b/g/n, Compatible with WiFi-1 Module
• NMEA 2000: Extensive PGN support for both transmit and receive
• NMEA 0183: TX/RX support for GPS, Navigation, Sonar, Compass, AIS/DSC

Cartography:

• Charts supported: C-MAP Reveal, C-MAP Discover, C-MAP (MAX N, MAX N+), C-MAP Genesis, C-MAP Precision Contour HD (AMER ONLY), Navionics (Gold, NAV+ Platinum+), Insight (Pro and HD), Lowrance Regional Mapping Partners

Autopilot:

• Manouevres: Turn Patterns, Course, Heading, Waypoint, Power Steer, U-Turn, C-Turn, Spiral, Zigzag, Square, Lazy-S
• Steering Modes: Course, Heading, Waypoint, Power Steer

Electrical:

• Power Consumption Max: 3.6A @ 13VDC with Full Backlight, Sonar on
• Power Consumption Min: 2.3A @ 13VDC with Full Backlight, Sonar on
• Power Consumption Typical: 2.3A @ 13VDC with Full Backlight, Sonar on
• Recommended Fuse Rating: 5A
• Supply Voltage: 12 v DC (10.8-17VDC)

Environment:

• Operating Temperature Range: 5°F to 131°F (-15°C to 55°C)
• Waterproof Rating: IPX7 with card door closed

GPS:

• GPS Receiver Channels: 16
• Position Accuracy: 20m RMS
• Update rate: 10 Hz

MFD:

• AIS: AIS Chart and Radar overlay, Target vessel details
• Digital Switching: Czone, Naviop
• Sonar Compatibility: Integrated CHIRP, Broadband, Active Imaging, Compatible with ActiveTarget, StructureScan
• Waypoints, Routes, Tracks: 3000 Waypoints, 100 Routes, 100 Trails (up to 10,000 points per trail)

Physical:

• Dimensions (W x H x D): 13.68" (347.5 mm) x 9.00" (225.5 mm) x 3.26" (82.9 mm)
• Weight: 5.76 lb (2.61 kg)

Other:

• Interface: Full Multi-touch touchscreen, 8-way directional keypad
• Languages: Multiple language packs available

Upgrade to the HDS PRO 12 and experience a new level of fishing success!
