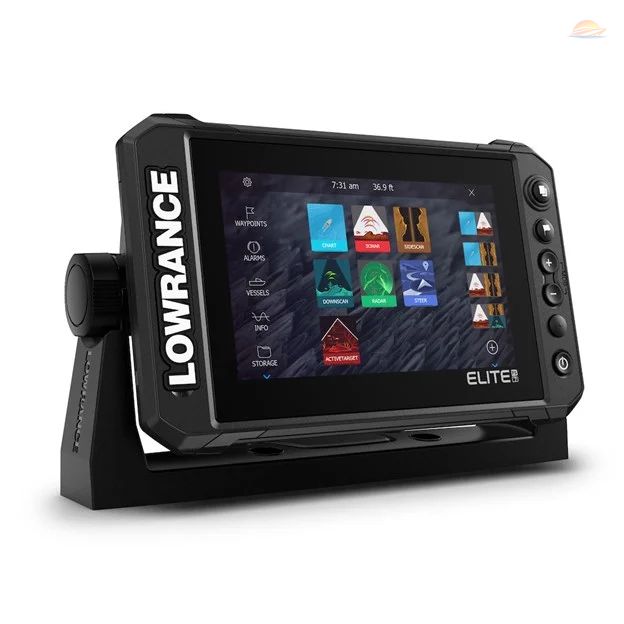

Elite FS 9, No Transducer

Unlock the ultimate fishing experience with the Elite FS 9, your gateway to Lowrance's complete suite of fishfinding technology. This powerful system is designed to maximize your time on the water, offering unmatched clarity and precision to help you locate and catch more fish. Whether you're a seasoned angler or just starting out, the Elite FS 9 provides the tools you need to succeed.

Key Features

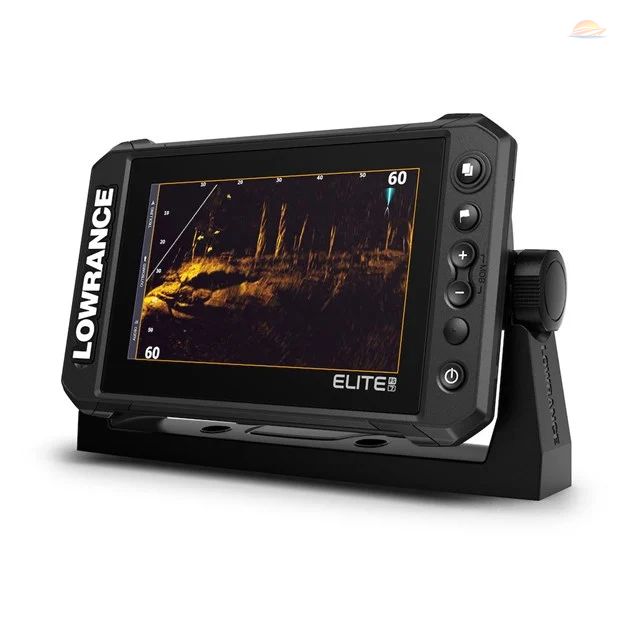

ActiveTarget® 2 Live Sonar Support: See fish and structure in real-time with stunning clarity. ActiveTarget® 2 Live Sonar allows you to track fish movements and adjust your presentation for the perfect catch.

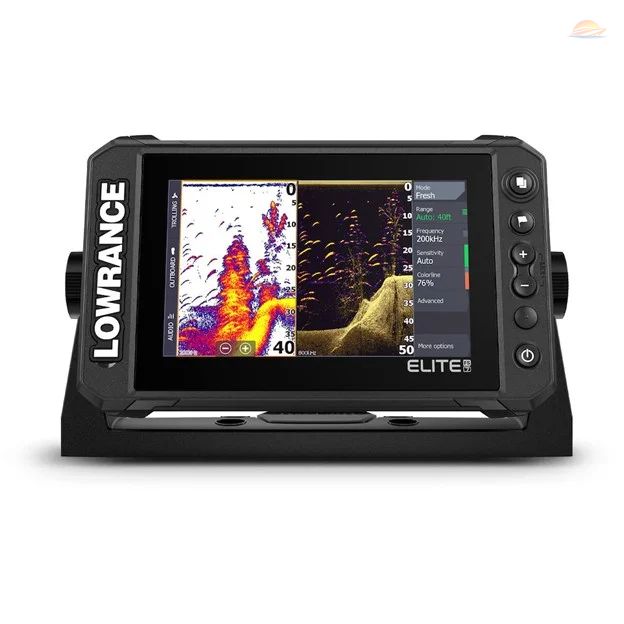

Active Imaging™ HD: Get the most detailed images of fish-holding structure with Active Imaging™ HD, including CHIRP Sonar, SideScan and DownScan Imaging™. See structure and fish with a new level of refined detail at a longer range than any other structure imaging technology.

Extensive Chart Compatibility: Choose from a wide range of chart options including C-MAP (MAX N, MAX N+), C-MAP Genesis, C-MAP Precision Contour HD (AMER ONLY), Navionics (Gold, NAV+ Platinum+), and Insight (Pro and HD), ensuring you have the best possible mapping for your fishing area.

High-Resolution Display: The 9-inch display with 800x480 resolution and >1200 nits brightness provides crystal-clear visuals, even in bright sunlight. The wide viewing angles (50° top, 60° bottom, 70° left/right) ensure you can see the screen from any position on your boat.

Wireless Connectivity: Stay connected with integrated Bluetooth 4.0 and Wi-Fi (802.11 b/g/n) for seamless software updates, wireless networking and smartphone integration.

Detailed Specifications

Connectivity:

• Ethernet Ports: 1 x 100Mbit
• NMEA 2000: Comprehensive support for various PGNs (see full list in specifications)
• SD Card Storage: 1 micro SD card up to 32GB

Cartography:

• Wide support for various chart providers ensures you have the best maps available.

Electrical:

• Power Consumption: Max 2.0A @ 13VDC, Typical 2.0A @ 13VDC
• Supply Voltage: 12v DC (10.8-17VDC)

Environmental:

• Operating Temperature Range: 5°F to 131°F (-15°C to 55°C)
• Waterproof Rating: IPX7

GPS:

• GPS Receiver Channels: 16
• Position Accuracy: 20m RMS
• Update Rate: 10 Hz

MFD Features:

• AIS Chart Overlay: Displays target vessel details for enhanced situational awareness.
• Autopilot Compatibility: Supports Outboard Pilot and Ghost Trolling Motor.
• Trolling Motor Control: Compatible with MotorGuide Xi5/Xi3 (requires Motorguide PinPoint Gateway).
• Sonar Compatibility: Integrated CHIRP, Broadband, Active Imaging DownScan, Active Imaging SideScan. Compatible with SonarHub, StructureScan, StructureScan 3D, LiveSight, and Active Target.
• Waypoints, Routes, Tracks: Store up to 3000 Waypoints, 100 Routes, and 100 Trails with up to 10,000 points per trail.
• Weather: SiriusXM via WM-4 (USA only) for real-time weather updates.

Physical:

• Weight: 2.7 lbs (1.2 kg)
• Mounting Type: Gimbal Bracket or Dash Flush Mount

Other:

• Interface: Multi-Touch Touchscreen
• Warranty Period: 2 Year

Why Choose the Elite FS 9?

The Elite FS 9 is more than just a fishfinder; it's a comprehensive fishing system designed to enhance your angling skills and increase your success on the water. With its advanced sonar technologies, extensive chart compatibility, and user-friendly interface, the Elite FS 9 is the perfect choice for anglers of all levels.

• Real-Time Fish Tracking: ActiveTarget® 2 Live Sonar lets you see fish move in real-time.
• High-Definition Imaging: Active Imaging™ HD provides the clearest views of underwater structures.
• Versatile Chart Options: Compatible with a wide range of charts to suit your fishing needs.
