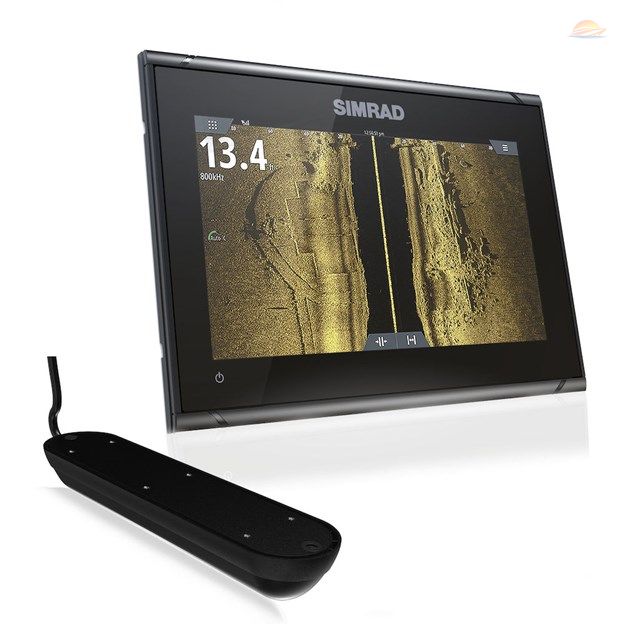

Simrad GO9 XSE with Active Imaging 3-in-1 Transducer

Enhance your boating experience with the Simrad GO9 XSE, a powerful and versatile multifunction display designed for sportboats, center consoles, and smaller cruisers. This unit comes equipped with an Active Imaging 3-in-1 transducer, providing you with detailed views of the underwater environment.

Key Features and Benefits

The Simrad GO9 XSE is more than just a display; it's a comprehensive navigation and control hub for your boat. Here's what makes it stand out:

• GPS Navigation: Navigate with confidence using the built-in 10Hz GPS receiver, offering precise positioning and accurate updates.
• Sonar Support: The Active Imaging 3-in-1 transducer delivers CHIRP Sonar, DownScan Imaging, and ForwardScan capabilities for a clear view of fish and structure below and ahead of your boat.
• Radar Capability: Add a Simrad radar system to navigate safely through crowded harbors, poor visibility, and changing weather conditions.
• Intuitive Touchscreen Control: Enjoy easy access to all features and settings via the user-friendly touchscreen interface.
• Wireless Connectivity: Mirror your display on smartphones and tablets, giving you control and viewing options from anywhere on board.
• Autopilot Integration: Seamlessly integrate with Simrad autopilot systems for precise and efficient boat control.
• Multimedia Entertainment: Connect to your on-board sound system via SonicHub2, Fusion Link, SiriusXM (USA only), or JL Audio (Australia & New Zealand only) for enhanced entertainment.

Detailed Specifications

Here’s a closer look at the technical specifications of the Simrad GO9 XSE:

Display

• Screen Brightness: 1200 nits
• Display Resolution: 800x480
• Viewing Angles: 80° top/bottom, 80° left/right

Physical

• Dimensions (W x H x D): 243 mm x 171 mm x 83 mm (9.56" x 6.71" x 3.26") without bracket
• Mounting Type: Bracket or Panel
• Weight: 1.315 kg (2.9 lbs)

Electrical

• Power Consumption: Max 20W, Typical 12W
• Supply Voltage: 10 - 17 V DC

Environment

• Operating Temperature Range: -15°C to +55°C (5° F to 131° F)
• Waterproof Rating: IPX 6 and 7

Connectivity

• Wi-Fi: Internal
• Bluetooth: Internal
• Ethernet Ports: 1 x 5 pin yellow connector x 1 Mbit (Radar and Sirius connectivity USA only)
• NMEA 2000 Connectivity: 1 x NMEA 2000 Micro-C port, 1 LEN
• SD Card Storage: 2 Micro SD slots, max. 32GB each (format >32 GB to NTFS)

MFD Features

• AIS: Receive AIS data over NMEA 2000
• Autopilot Modes: Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail)
• Sonar Compatibility: Integrated CHIRP / DownScan / ForwardScan with single 9 Pin Xsonic Connector
• Waypoints, Routes, Tracks: 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points

GPS

• GPS Receiver Channels: 32 Channels
• Position Accuracy: Horizontal Accuracy 3 m (9.8 ft.)
• Update Rate: 10 Hz

Other Features

• Interface: Touch screen, OP40 or OP50 controller via NMEA 2000
• Languages: Multiple language packs available
• Warranty Period: 2 Years

The Simrad GO9 XSE with Active Imaging 3-in-1 Transducer is the ultimate solution for boaters seeking advanced navigation, sonar, and control capabilities in a single, easy-to-use display. Upgrade your boat today and experience the difference!
