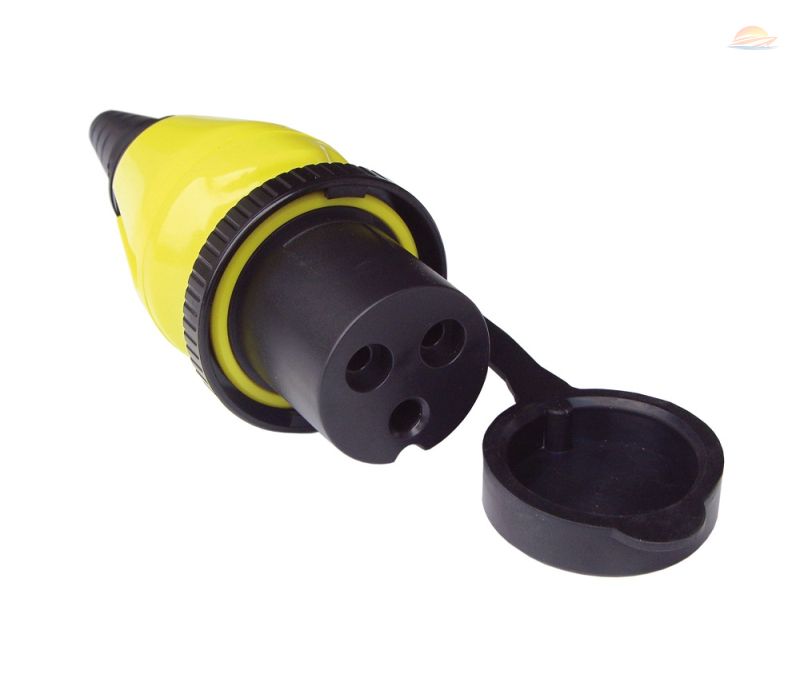

Rewirable Connector - Shore Power MP16 Plug
-
Code:MP16-110
-
Weight:2.000 Kgs
The Ratio Shore Power MP16 Plug is a reliable rewirable connector, perfect for marine applications. This assemble version offers a secure and durable connection with a maximum current of 16A at 250V. Its IP44 protection class ensures resistance against water splashes, making it suitable for demanding environments.
- Maximum Current: 16A/250V
- Protection: IP44
- Connection System: Screwed terminal
Estimated Shipping
to Veliko Tarnovo starts at
€1.66
outside Veliko Tarnovo starts at
€1.72
Quick Buy
Introducing the Ratio Shore Power MP16 Connector, a reliable and robust solution for your shore power needs. Designed for easy assembly, this connector ensures a secure and efficient connection for your electrical devices.
Key Features:
- Rewirable Design: Assemble your shore power plugs with ease, ensuring a custom fit for your specific cable requirements.
- Maximum Current: Supports up to 16A at 250V, suitable for a wide range of applications.
- IP44 Protection Class: Offers protection against splashing water, making it ideal for marine and outdoor environments.
- Durable Construction: Made from high-quality thermoplastic material for long-lasting performance.
- Screwed Terminal Connection: Provides a secure and reliable connection for optimal performance.
Detailed Specifications:
- Item Number: MP16-110
- Brand: RATIO ELECTRIC
- Product Series: SHORE POWER
- Product Type: MP16-110
- GTIN: 08718375363409
- Nominal Current: 16 A
- Nominal Voltage: 250 V
- Number of Poles: 3
- Color: Yellow (RAL-number 1016)
- Material: Plastic, Thermoplastic
- Degree of Protection: IP44
- Connection System: Screwed terminal
- Insert Direction: Straight
Cable Recommendations:
Selecting the correct cable is crucial for safe and efficient operation. Here are our recommendations:
- Up to 10A: H07BQ-F 3G1,50mm²
- Up to 16A: H07BQ-F 3G2,50mm²
- Up to 25A: H07BQ-F 3G4,00mm²
- Up to 32A: H07BQ-F 3G6,00mm²
- Up to 50A (up to 25m length): H07BQ-F 3G10,00mm²
Additional Information:
- ETIM Group: Domestic switching devices-EG000013
- ETIM Class: Coupler with protective contact-EC001327
- Halogen Free: No
- Suitable for Protective Contact Pin: No
- For Heavy Conditions according to VDE: No
- NEMA designation: Other
- Model: Other
Ensure a reliable and safe power connection with the Ratio Shore Power MP16 Connector. Its robust design and easy assembly make it an essential component for any shore power setup.
