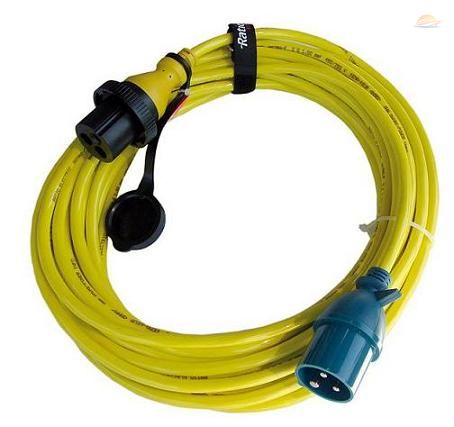

Shore Power Cable MP16-CEE H07BQ-F 3G2,50mm² 25m

Introducing the Ratio Electric Shore Power Cable MP16 – your reliable and durable solution for connecting your boat to shore power. Designed with top-tier materials and construction, this cable ensures a safe and efficient power transfer, giving you peace of mind during your maritime adventures.

Uncompromising Quality and Watertight Design

Crafted with a yellow PUR (Polyurethane) cable jacket, this shore power cord set is built to withstand harsh marine environments. The watertight moulded plugs (MP16 and MP32) and assembled plug and connector (MP50) provide superior protection against water ingress, ensuring a long service life and reliable performance. These moulded connectors guarantee watertightness, making them ideal for demanding marine conditions.

Superior Materials for Enhanced Durability

The cable is made of H07BQ-F 3G2,50mm², known for its robustness and resistance to abrasion, chemicals, and UV exposure. This ensures that the cable maintains its integrity even after prolonged use in challenging conditions. The boat plug features a bayonet ring for a secure and watertight connection to your boat's inlet, further enhancing its reliability.

Key Features and Benefits

• Watertight Connectors: Moulded plugs (MP16 and MP32) and assembled plug/connector (MP50) ensure a watertight seal, preventing corrosion and electrical issues.
• Durable PUR Cable: The yellow PUR cable jacket offers excellent resistance to abrasion, chemicals, and UV rays, extending the cable's lifespan.
• Voltage Indicator and Protective Cover: The boat plug is equipped with a voltage indicator for added safety and a protective cover to shield it from the elements.
• Optimal Length: With a generous 25-meter length, this cable provides ample reach to connect to shore power sources, offering flexibility and convenience.
• High Performance: Rated at 16A/250V, this cable ensures a stable and efficient power supply to your boat.
• IP44 Protection Class: Offers protection against solid objects larger than 1mm and splashes of water from any direction.

Technical Specifications

Here are the detailed specifications for the Ratio Electric Shore Power Cable MP16:

• Item No.: 2822
• Max Rating: 16A/250V
• Cable Type: H07BQ-F 3G2,50mm²
• Cable Jacket Material: PUR
• Protection Class: IP44
• ETIM Group: Batteries, chargers, and power cords-EG000053
• ETIM Class: Power cord-EC001576
• Brand: RATIO ELECTRIC
• Product Series: Shore Power
• Product Type: 2822
• GTIN: 08718375361818
• Reaction-to-fire: Acidity-None, Flaming droplets/particles-None, Smoke production-None, Class-None
• Oil Resistant: Yes, according to EN IEC 60811-404
• Colour Outer Sheath: Yellow
• Frequency: 50 Hz
• Nominal Voltage: 220 V
• Nominal Current: 16 A
• Number of Cores: 3
• Connector 1: CEE plug (IEC 60309)
• Connector 2: Other

Peace of Mind on the Water

Invest in the Ratio Electric Shore Power Cable MP16 for a reliable, durable, and safe power connection for your boat. Enjoy your time on the water with the confidence that your electrical needs are well taken care of.
