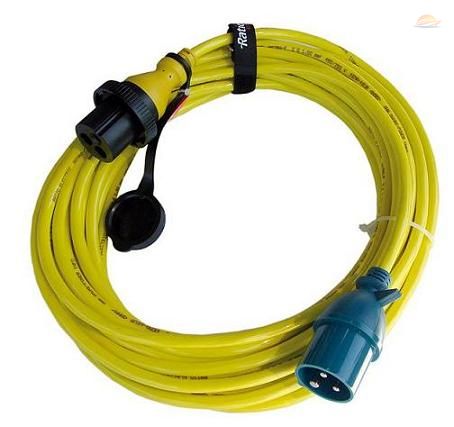

Shore Power Cable MP32-CEE H07BQ-F 3G4,00mm² 25m

Experience unparalleled quality and reliability with the Ratio Electric Shore Power Cable, designed to provide a secure and watertight connection for your boat. This 25-meter cable is engineered with a robust yellow PUR cable and features moulded connectors to ensure maximum durability and performance in marine environments.

Key Features and Benefits

Superior PUR Cable: The cable is constructed from high-grade Polyurethane (PUR), known for its exceptional resistance to abrasion, chemicals, and harsh weather conditions. This ensures a long service life and reliable performance, even in demanding marine environments.

Watertight Moulded Connectors: For MP16 and MP32 models, the cable comes with watertight moulded plugs and connectors. These connectors are specifically designed to prevent water ingress, ensuring a safe and reliable power connection between your boat and the shore power source. The moulding process guarantees a seamless, robust seal that stands up to the rigours of marine use.

MP50 Connector Design: The MP50 model features a watertight assembled plug and connector, providing the same level of protection and reliability as the moulded connectors.

Bayonet Ring and Protective Cover: The boat plug is equipped with a bayonet ring for a secure and watertight connection to the boat's inlet. Additionally, it includes a protective cover to shield the plug from damage and contamination when not in use.

Voltage Indicator: Enhance your safety with the integrated voltage indicator on the boat plug. This feature allows you to quickly and easily verify the presence of power, providing an added layer of security during connection and disconnection.

Technical Specifications

• Item No.: 2832
• Max Rating: 25A / 250V
• Cable Type: H07BQ-F 3G4,00mm²
• Cable Jacket Material: PUR
• Protection Class: IP44
• Length: 25 meters
• Number of Cores: 3
• Frequency: 50 Hz
• Nominal Voltage: 220 V
• Nominal Current: 32 A
• Connector 1: CEE plug (IEC 60309)
• Connector 2: Other
• Oil Resistant: Yes, according to EN IEC 60811-404
• Colour Outer Sheath: Yellow

Safety and Compliance

This shore power cable meets stringent safety standards, ensuring peace of mind while you enjoy your time on the water. It has been tested for reaction-to-fire according to EN 13501-6, with ratings of None for acidity, flaming droplets/particles, smoke production, and overall class. The cable also features a protective conductor for added safety.

Additional Features

• Oil Resistance: Compliant with EN IEC 60811-404, ensuring durability in oily marine environments.
• IP44 Protection: Offers protection against solid objects larger than 1mm and splashing water from any direction.
• System-Oriented Connector System: Ensures compatibility and ease of use with standard shore power connections.

Choose the Ratio Electric Shore Power Cable for a reliable, durable, and safe power connection that you can depend on. Enjoy your boating adventures with the confidence that your electrical needs are securely managed.
