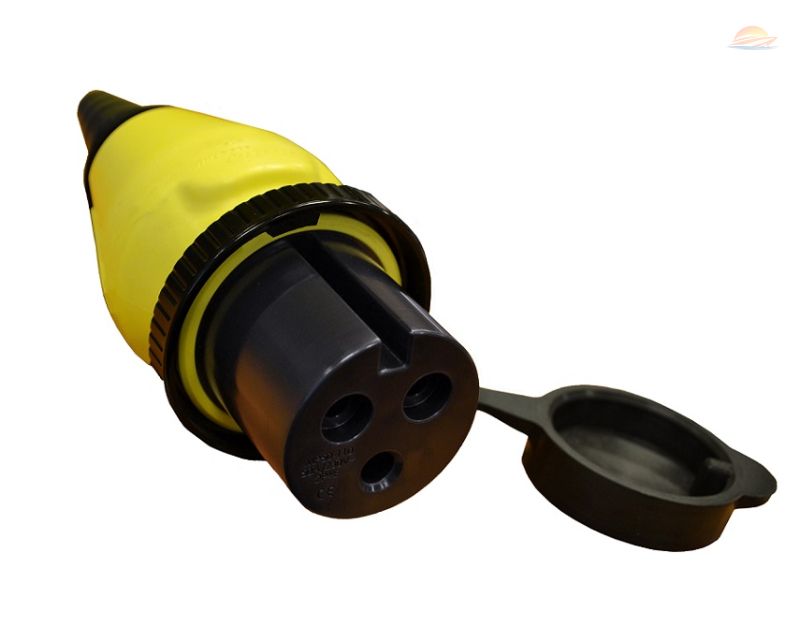

Shore Power MP50 Plug

Introducing the robust and reliable Shore Power MP50 Connector from RATIO ELECTRIC, designed to provide a secure and efficient power connection for your marine and industrial needs. This connector is part of the SHORE POWER product series, known for its durability and performance in demanding environments.

Key Features:

• High Current Capacity: Rated for a maximum current of 50A at 250V, ensuring it can handle significant power loads.
• IP44 Protection: Offers protection against solid objects larger than 1mm and splashes of water, making it suitable for use in environments where exposure to moisture is possible.
• Durable Construction: Made from high-quality thermoplastic material, providing excellent resistance to wear and tear.
• Screw Terminal Connection: Features a secure screw terminal connection system for reliable and stable wiring.
• Easy Assembly: Also available as an assemble version, allowing for convenient customization and installation.

Technical Specifications:

• Brand: RATIO ELECTRIC
• Product Series: SHORE POWER
• Product Type: MP50-110
• Item No.: MP50-110
• GTIN: 08718375369777
• Nominal Current: 50 A
• Nominal Voltage: 250 V
• Number of Poles: 3
• Colour: Yellow (RAL-number 1016)
• Material: Plastic (Thermoplastic)
• Degree of Protection: IP44
• Connection System: Screwed terminal
• Insert Direction: Straight

Recommended Cable Specifications:

Choosing the right cable is crucial for ensuring safe and efficient power transmission. Here are the recommended cable specifications for different current levels:

• Up to 10A: H07BQ-F 3G1,50mm²
• Up to 16A: H07BQ-F 3G2,50mm²
• Up to 25A: H07BQ-F 3G4,00mm²
• Up to 32A: H07BQ-F 3G6,00mm²
• Up to 50A (up to 25m length): H07BQ-F 3G10,00mm²

Applications:

The Shore Power MP50 Connector is ideal for a variety of applications, including:

• Marine: Connecting boats and yachts to shore power supplies.
• Industrial: Providing reliable power connections in industrial settings.
• Outdoor: Suitable for outdoor use due to its IP44 protection rating.

Why Choose the RATIO ELECTRIC Shore Power MP50 Connector?

This connector stands out due to its combination of high current capacity, robust construction, and ease of use. Whether you need a reliable power connection for your boat, industrial equipment, or outdoor setup, the Shore Power MP50 Connector is an excellent choice. Its durable thermoplastic material ensures long-lasting performance, while the screw terminal connection provides a secure and stable electrical link.

Additional Information:

• Halogen Free: Yes
• Suitable for Protective Contact Pin: No
• For Heavy Conditions According to VDE: No
• NEMA Designation: Other

Ensure a safe and efficient power connection with the RATIO ELECTRIC Shore Power MP50 Connector. Order yours today and experience the quality and reliability that RATIO ELECTRIC is known for!
