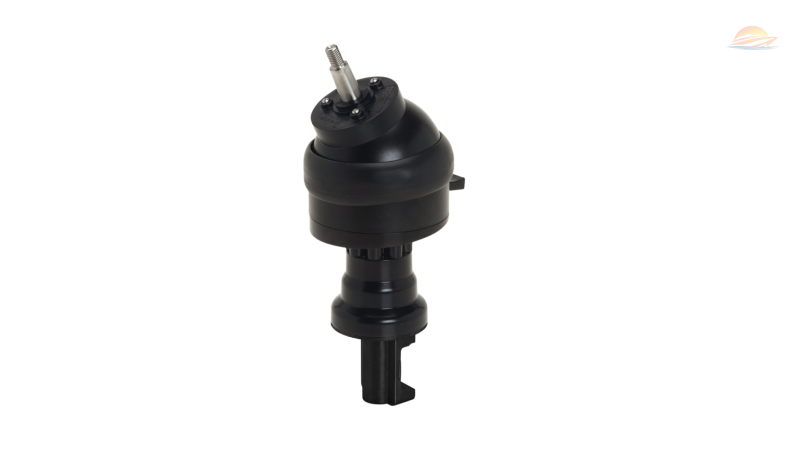

TM87J* Tilt Rack and Pinion Steering Systems for Jet Boats

Experience enhanced control and unmatched reliability with the TM87J Tilt Rack and Pinion Steering Systems, engineered specifically for jet boats. This system ensures smooth, efficient steering and adheres to the strictest safety standards, providing peace of mind on every voyage.

Key Features and Benefits

High-Quality Materials: All cable exits are constructed from stainless steel, offering exceptional durability and superior corrosion resistance, ensuring long-lasting performance in harsh marine environments.

Corrosion Resistance: Manufactured using corrosion-resistant materials, the TM87J is built to withstand the challenges of marine environments, extending its lifespan and maintaining its functionality.

Universal Compatibility: Featuring a standard 3/4” tapered shaft, this steering system is compatible with a wide range of steering wheels, giving you the flexibility to choose the perfect wheel for your needs.

Uncompromising Safety: Exceeding ISO 8848 and ABYC P17 safety standards, the TM87J ensures the highest level of safety, allowing you to navigate with confidence.

Customizable Steering Wheel Options: Tailor your steering experience with the ability to select a steering wheel that matches your preference and style.

Compliance with Standards: Meets EN28848, EN29775, ABYC P22, and UKCA standards, guaranteeing quality and safety.

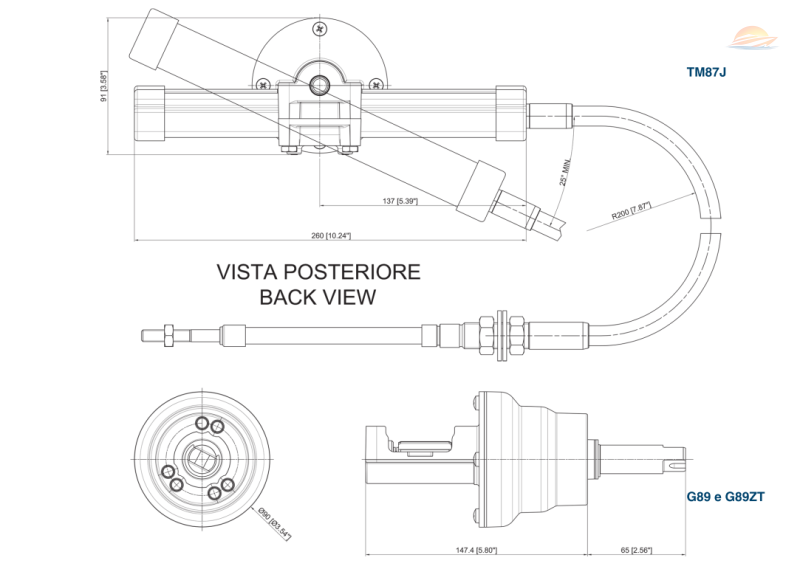

Technical Data for Optimal Performance

The TM87J systems deliver outstanding performance and exceptional steering comfort. Here are the key technical specifications:

Installation Flexibility: Can be installed at either a 90° or 20° angle, providing adaptable installation options.

Travel Distance: TM87J travel: 93 mm (3.7”).

Steering Ratio: Approximately 1.5 turns from end to end, offering responsive and precise control.

Maximum Steering Wheel Diameter: Supports steering wheels up to 420 mm (16.5”), catering to various preferences.

Minimum Bend Radius: Minimum steering cable bend radius: 200 mm (7.9”).

Important Note

To ensure safety and optimal performance, the TM87J steering systems should only be used on boats with engines that do not exceed the boat's maximum horsepower rating.

Components (Sold Separately)

Customize your steering system with these separately ordered components:

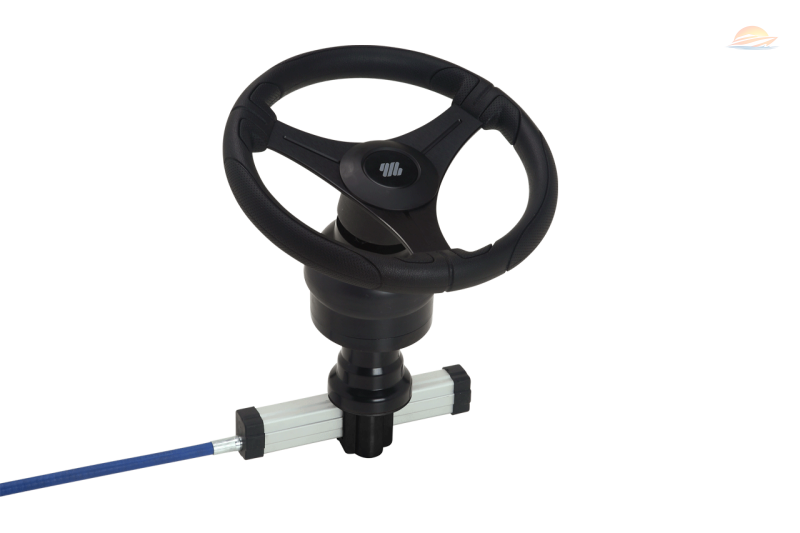

TM87J (43839G): Pre-assembled steering wheel with steering cable for a complete and ready-to-install solution.

G89 (43844Z): Standard steering console with X52 tilt mechanism for added comfort and adjustability (ordered separately).

G89ZT (43845B): Zero-torque helmet with X52 tilt mechanism, providing enhanced steering feel and control (ordered separately).

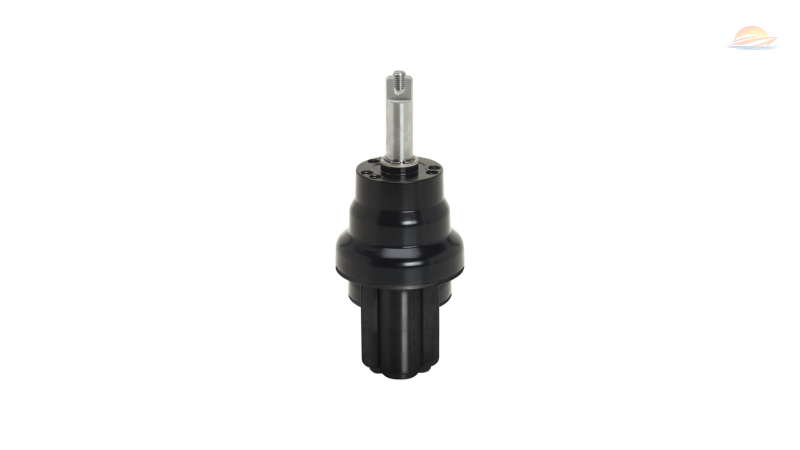

X52 (39250U): Tilt mechanism, allowing you to adjust the steering wheel angle for maximum comfort.

Invest in the TM87J steering system today and elevate your boating experience with enhanced safety, precision, and comfort. Enjoy every journey with confidence and control!

* Key Features: * Stainless Steel Cable Exits * Corrosion-Resistant Materials * 3/4" Tapered Shaft Compatibility * Exceeds ISO 8848 and ABYC P17 Safety Standards * Customizable Steering Wheel
