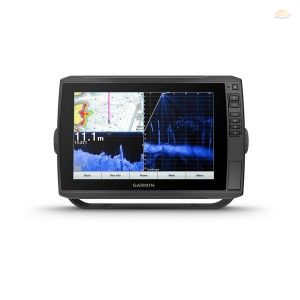

ECHOMAP™ Ultra 2 102sv - 10"
-
Code:010-02879-00-1
-
Weight:1.800 Kgs
With Transducer
ECHOMAP Ultra 102sv
GT56UHD-TM Transducer
Charging/Data Cable
Quick Release Mount
Protective Cover
Hardware
Documentation
Without Transducer
ECHOMAP Ultra 102sv
Charging/Data Cable
Quick Release Mount
Protective Cover
Hardware
Documentation
With large, clear, sunlight-readable touchscreen displays, these multi-function chartplotters put a world of fish-finding possibilities at your fingertips.
Estimated Shipping
to Veliko Tarnovo starts at
€1.66
outside Veliko Tarnovo starts at
€1.72
Quick Buy
Physical data and features
Dimensions 29.5 x 19.5 x 9.8 cm (11.6″ x 7.7″ x 3.9″)
Weight 1.8 kg.
Display type WXGA, IPS
Display dimensions 21.7 x 13.6 cm.; 21.7 cm diagonal
Display resolution 1280 x 800 pixels
Receiver 10 Hz
Garmin Marine Network ™ ports 2 (large connectors)
Power 600 W
Touchscreen Yes
Water resistance (IP rating) IPX7
Cards and memory
Additional memory 2 microSD Cards
Waypoints/favorites/locations Waypoints - 5000; Waypoints - 50,000; Tracks - 50 saved tracks; Navigation routes - 100;
Sensors
GPS Yes
GLONASS Yes
Galileo Yes
BeiDou Yes
WAAS support Yes
Multi-band, multi-constellation GPS support Yes
Chart features
AIS support Yes
DSC support Yes
FUSION-Link™ support Yes
ActiveCaptain compatibility Yes
Features and specifications
Traditional scanning Built-in (single-channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
ClearVü Built-in 260/455/800/1000/1200 kHz
SideVü Built-in 260/455/800/1000/1200 kHz
Connectivity
NMEA 2000® compatibility Yes
