NAIS-500 + NSPL-500 + GPS-500 + N2K
-
Code:NAV-000-13963-001
-
Weight:0.000 Kgs

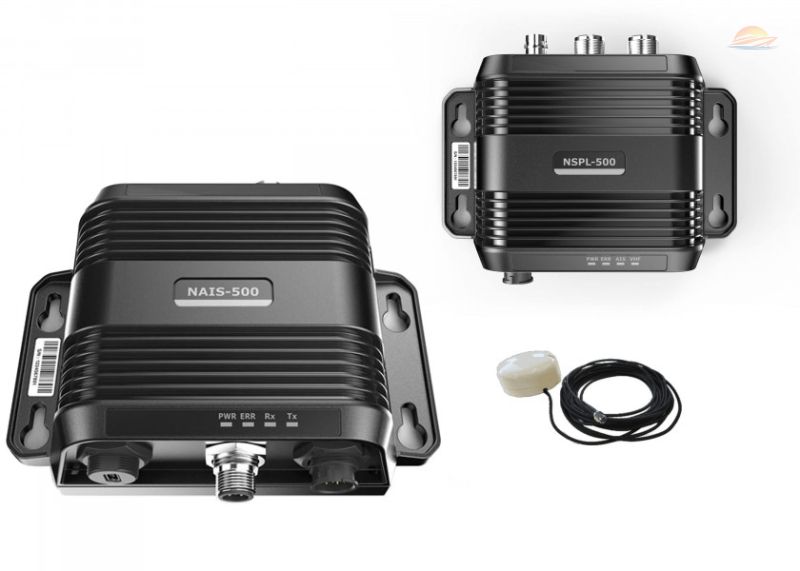

NAIS-500 AIS transponder including NSPL-500 splitter from Navico. The following components are included in the scope of delivery: NAIS-500 AIS transponder, NSPL-500 antenna splitter, GPS-500 antenna, 1.8 m NMEA2000 cable and NMEA2000 T.
Reduce the risk of collision with this fully integrated NAIS-500 Class B AIS transponder - essential for navigation in today's busy shipping lanes and congested ports.
Compact in size, lightweight, fully waterproof, low power consumption and with multiple connections, the NAIS 500 is ideal for networking with any NSS, NSO or GO series chartplotter/multifunction display and Simrad RS VHF system.
Quick Buy
What's in the box:
N2K-T-RD Network T-connector
NMEA 2000 6-foot network extension cable
NSPL-500 Antenna splitter

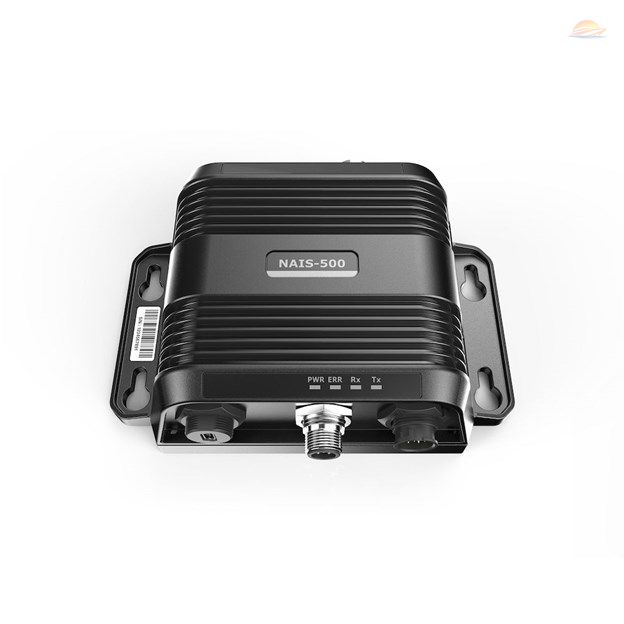

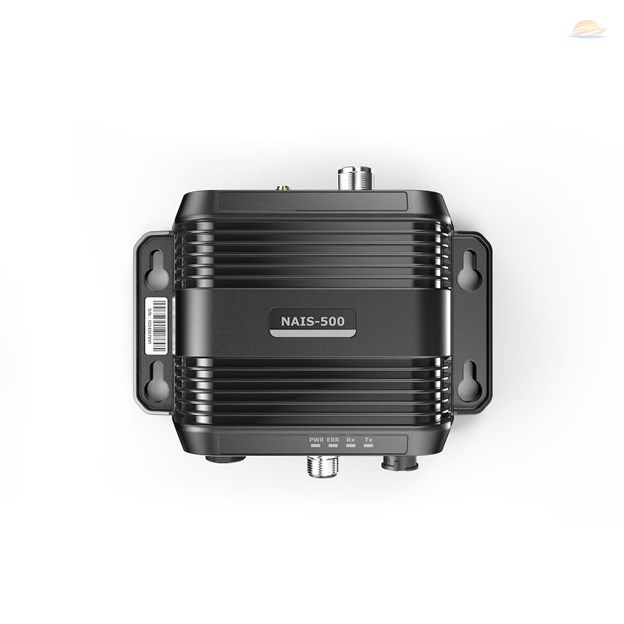

NAIS-500 Class B AIS
GPS-500: GPS antenna for the NAIS-500 AIS transceiver
Technical data - AIS transponder NAIS-500
Dimensions 152 x 98 x 52 mm
Weight 260 g
Power supply 9.6 - 31.2 V DC
Average consumption: 180 mA at 12 V
Peak consumption: 2 A at 12 V
GPS receiver (integrated) Compatible with 50 channels
USB interfaces
NMEA0183 (38,400 baud)
NMEA0183 (4,800 baud)
NMEA2000

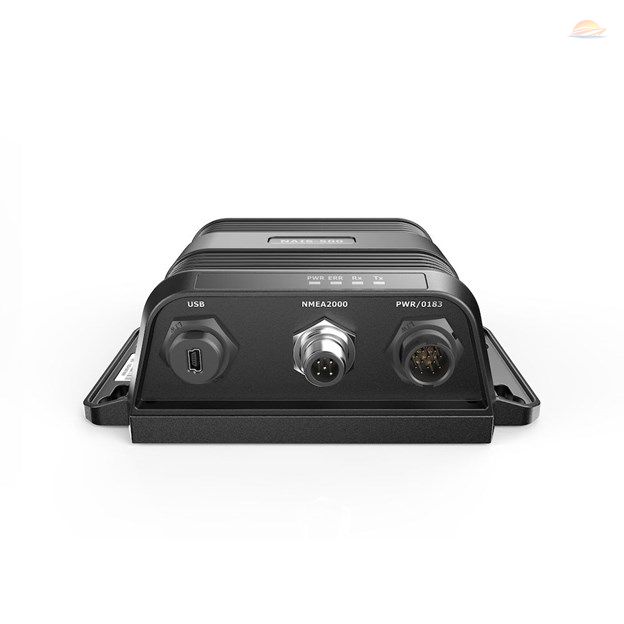

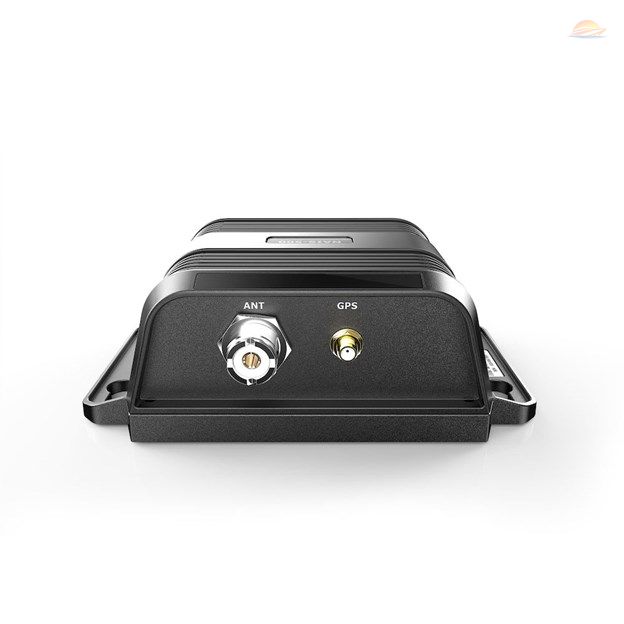

Connectors VHF antenna plug
External GPS Antenna Plug
USB-Type Mini-B
Standard NMEA2000 Plug (Micro-C)
12-pin Power Input / NMEA0183 / External Switch
Specifications - NSPL-500 Splitter
Dimensions 152 x 98 x 52 mm (LxWxH)
Weight 260 g
Power Supply 9.6 - 31.2 V (DC)
Power Consumption <150 mA at 12 V (DC)
Antenna Connector SO239 Socket (for P / L 259 Plug)
VHF Radio Connection SO239 Socket (for P / L 259 Plug)
AIS Transmitter/Receiver Connection BNC Socket
FM Radio Motorola Car Radio Plug
Impedance AIS, VHF and Antenna Connection 50 Ohm
Impedance VHF Connection 75 Ohm
Operating Temperature -15° to +55°C
Protection system IP67
