NAC-3 Core Pack
-
Code:NAV-000-13336-001
-
Weight:0.000 Kgs
NAC-3 Core Pack
This package includes all the essential components you need to upgrade your boat with a Continuum autopilot system, designed for helm-driven vessels over 10 meters (35 feet) in length. Simply add a drive unit to match your steering system and choose a dedicated autopilot controller or Simrad multifunction display.
Product Details
NAC-3 Basic Autopilot Package
This package includes a Simrad NAC-3 autopilot computer, RF25N rudder feedback unit, Precision-9 solid-state compass, and all the cables and connectors needed to build a NMEA 2000® network anchor point or connect your autopilot system to an existing NMEA 2000® network. This package is recommended for rudder boats over 10 meters (35 feet) in length and is suitable for use with high-current pumps including the Simrad RPU160 and RPU300, mechanical drives such as the Simrad DD15, hydraulic linear drives such as the HLD2000 series and solenoid valves.
Quick Buy
Multiple control options
Choose from a range of dedicated autopilot controllers or operate your autopilot from your existing Simrad multifunction display. Install additional autopilot stations, ideal for dual-helm vessels, or add the Simrad WR10 wireless remote for instant control and management of your autopilot from anywhere on board.
Easy installation and setup
Industry-standard NMEA 2000® networking and NMEA 0183® input offer reliable connectivity to sensors, autopilot controllers and multifunction displays located anywhere on board. Auto-tune simplifies setup and ensures optimal steering performance, while automatic compass calibration continuously improves heading accuracy as you sail.
Key Features
Essential autopilot system components – simply add a drive unit and controller
Ideal for boats with steering systems over 10 meters (35 feet) in length
Compatible with high-current propulsion pumps, mechanical drives, hydraulic linear actuators and solenoid valves
Take control with the Simrad AP44 autopilot controller, IS42 display and OP12 keypad or networked multifunction display
Easy setup with automatic compass tuning and calibration

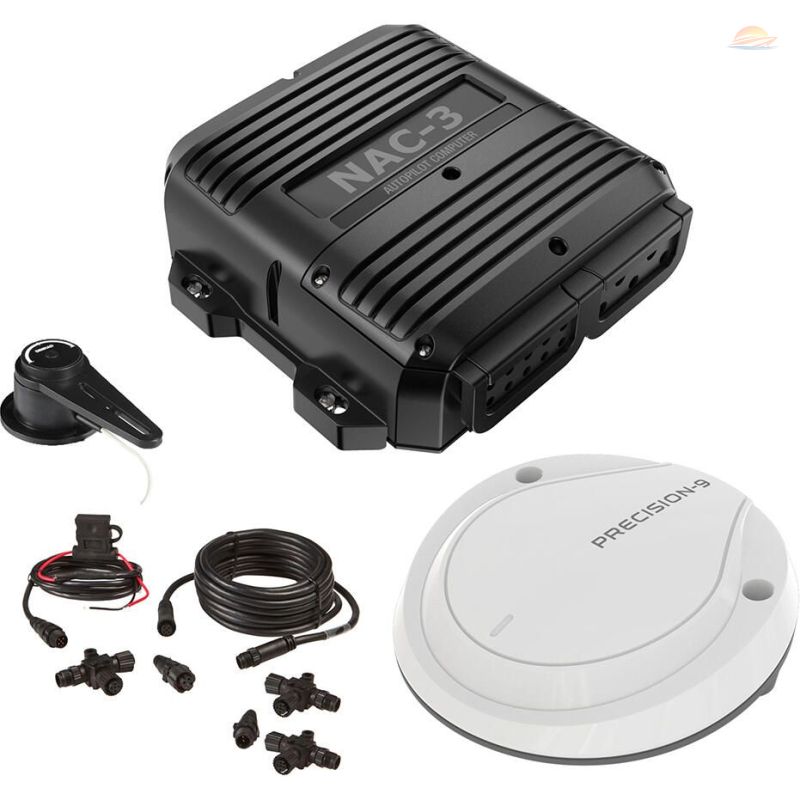

What’s in the box:
Precision-9 compass

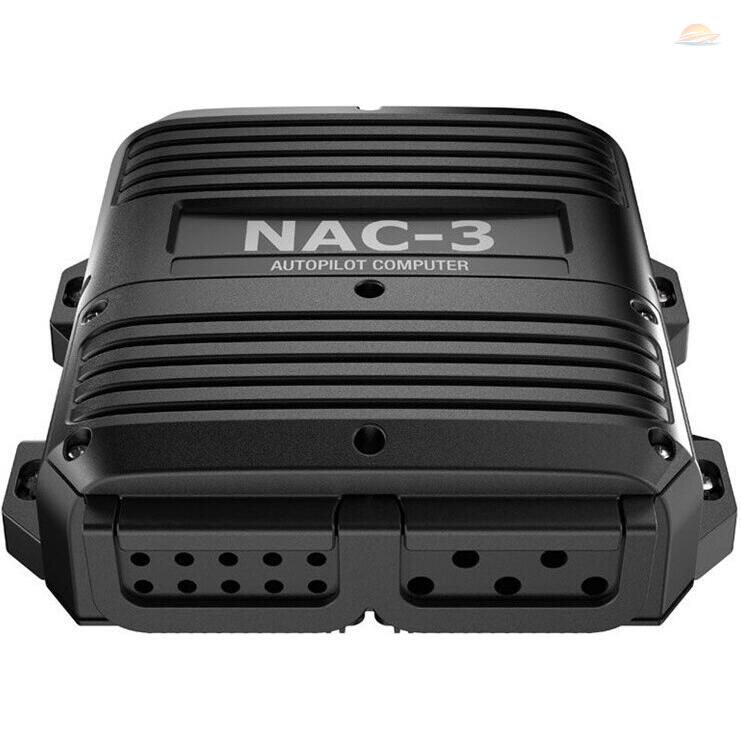

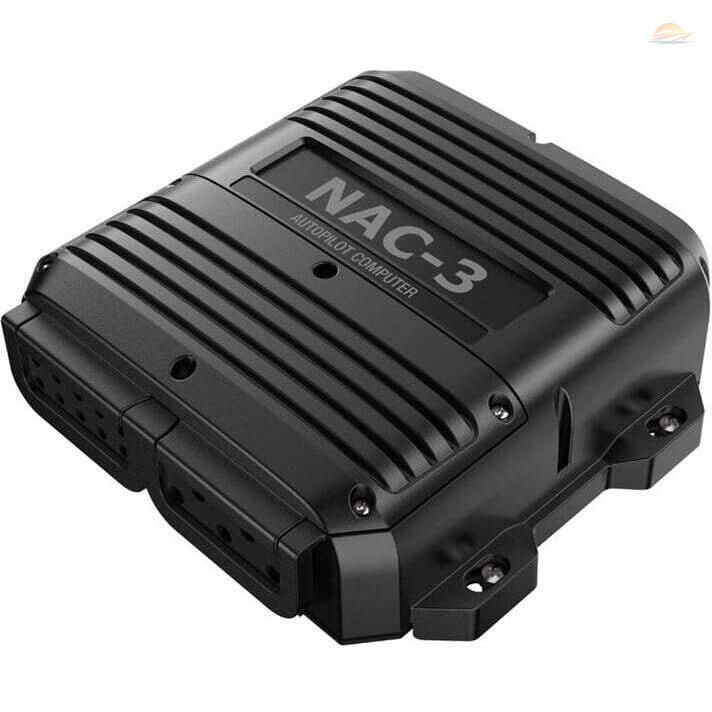

NAC-3 autopilot computer
Micro-C backbone kit
RF25N Rudder reference sensor with Micro-C connector
