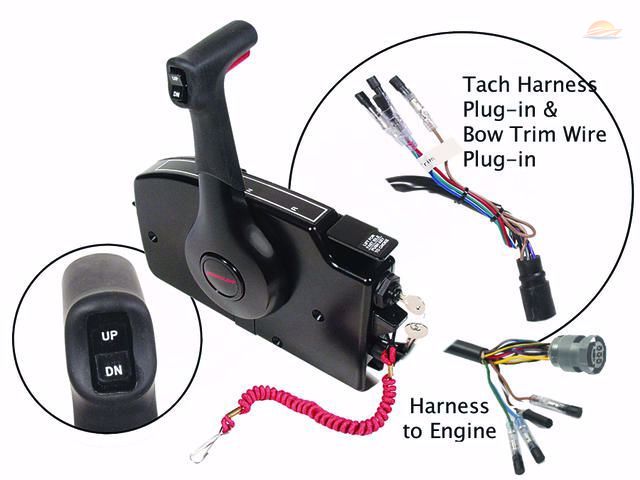

Mercury 8M0178533 – side-mount control
-
Code:8M0178533
-
Weight:0.000 Kgs
Mercury 8M0178533 – side-mount control. Side mounting; AMP 10-pin connector; 15 ft (approximately 4.58 m) electrical harness, not 3 m; GEN I mechanical cables; trim. Mercury 8/9.9/15/20 FourStroke compatibility must be checked by generation and serial number.
Quick Buy
Mercury 8M0178533 – side-mount control. Side mounting; AMP 10-pin connector; 15 ft (approximately 4.58 m) electrical harness, not 3 m; GEN I mechanical cables; trim. Mercury 8/9.9/15/20 FourStroke compatibility must be checked by generation and serial number.
Check before ordering
Provide the engine model, year and serial number, control type and a photo of the existing connector. Horsepower alone does not establish compatibility. A mechanical control does not replace digital DTS controls.
Electrical harness length is not throttle/shift cable length. Mechanical cables must be selected separately for the boat routing and installation requirements.
Installation in Bulgaria
Genesis Fishing assists with compatible component selection. The quotation must specify supplied parts, adapters, cables, steering and installation. Installation and safe-operation checks should be performed by a qualified specialist.
Key features
Mercury 8M0178533 – side-mount control . Side mounting; AMP 10-pin connector; 15 ft (approximately 4.58 m) electrical harness, not 3 m; GEN I mechanical cables; trim. Mercury 8/9.9/15/20 FourStroke compatibility must be checked by generation and serial number.
FAQ
How do I check compatibility?
Use the engine model, year, serial number, electrical connector and mechanical cable type. Do not select by horsepower alone.
Is it suitable for DTS?
The described mechanical control does not replace digital DTS controls.
Does the electrical harness include mechanical cables?
They are different components. Confirm the package contents and required mechanical cables separately.
What is included in the price?
The quotation specifies the exact package. Do not assume steering, adapters or installation are included unless listed.
