NSX 3007 SONAR/GPS COMBO WITHOUT PROBE
-
Code:NAV-000-15215-001
-
Weight:0.000 Kgs

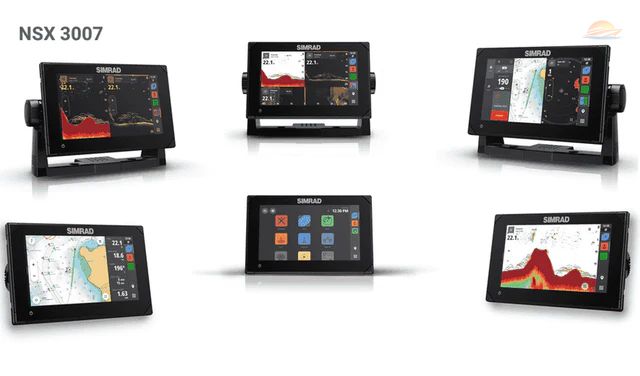

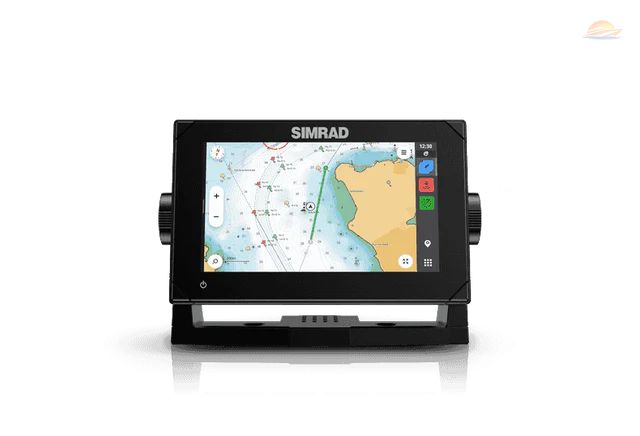

Simrad NSX 3007 Fishfinder / GPS Chartplotter – No Transducer
The Simrad NSX 3007 is a premium 7-inch multifunction chartplotter and fishfinder designed for anglers and boaters who demand powerful navigation, fast performance, and advanced sonar capabilities. Featuring the intuitive NEON™ operating system, a brilliant SolarMAX™ IPS HD touchscreen, and support for CHIRP, SideScan and DownScan Imaging™ (with compatible transducer), the NSX delivers outstanding performance on the water.
This version is supplied without a transducer.
Quick Buy
Simrad NSX 3007 – Next Generation Marine Navigation
The Simrad NSX 3007 combines advanced navigation technology with professional fishfinding features in a compact 7-inch multifunction display.
Powered by the new NEON™ OS, the interface delivers smooth operation, drag-and-drop customization, and quick access to all navigation and sonar functions.
Its SolarMAX™ IPS HD touchscreen provides exceptional visibility from any viewing angle, even in direct sunlight or while wearing polarized sunglasses.
When paired with a compatible transducer, the NSX supports:
- CHIRP Sonar
- SideScan Imaging™
- DownScan Imaging™
- FishReveal™
- Active Imaging™ 3-in-1
The built-in networking capabilities allow seamless integration with:
- HALO® Radar
- Simrad Autopilot
- AIS Systems
- Mercury SmartCraft®
- CZone® Digital Switching
- IP Cameras
- Simrad Companion App
The NSX 3007 is compatible with the latest C-MAP® DISCOVER™ X and REVEAL™ X marine charts, providing high-resolution bathymetry, fast autorouting, tide information, and detailed navigation data.
Technical Specifications
- 7" SolarMAX™ IPS HD Touchscreen
- Resolution: 1024 × 600 pixels
- Brightness: >1200 nits
- Built-in 10 Hz GPS/GNSS Receiver
- Integrated 1 kW Sonar Module
- CHIRP Sonar Ready
- SideScan Imaging™ Support
- DownScan Imaging™ Support
- FishReveal™ Support
- Active Imaging™ Compatible

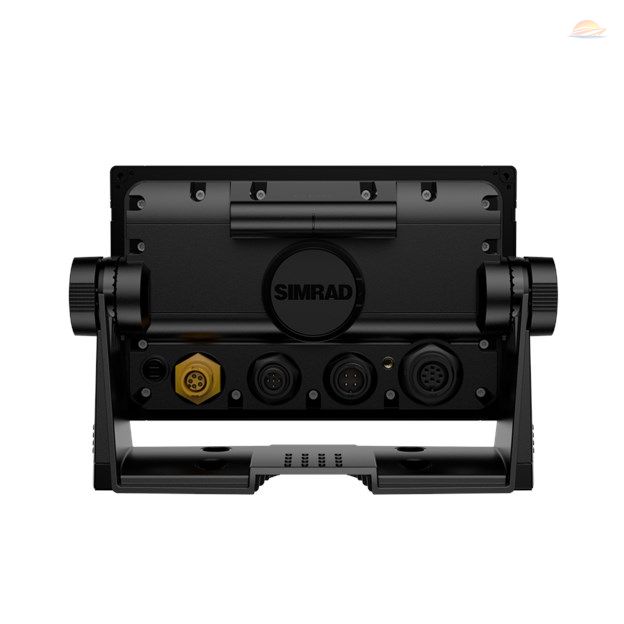

- Ethernet Port
- NMEA 2000® Networking
- Wi-Fi
- Bluetooth
- MicroSD Card Slot
- HALO® Radar Compatible
- Simrad Autopilot Ready
- AIS Compatible
- Mercury SmartCraft® Integration
- Simrad Companion App Support
- Operating Voltage: 10–17 V DC
- Maximum Power Consumption: 11.5 W
- Waterproof Rating: IPX6 / IPX7
- Mounting: Bracket or Flush Mount
- Dimensions: 195 × 123 × 79.5 mm
- Weight: Approx. 0.8 kg
Package Contents
- Simrad NSX 3007 Display
- Mounting Bracket
- Power Cable
- Mounting Hardware
- Documentation
Note: Transducer is not included and must be purchased separately.
