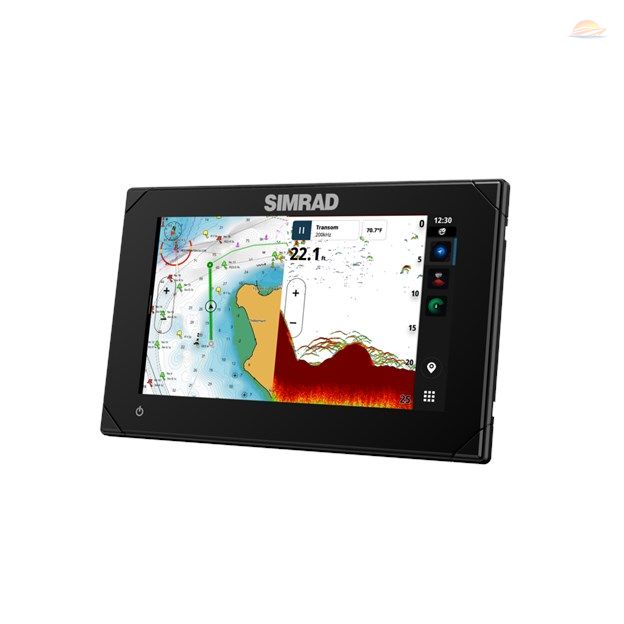

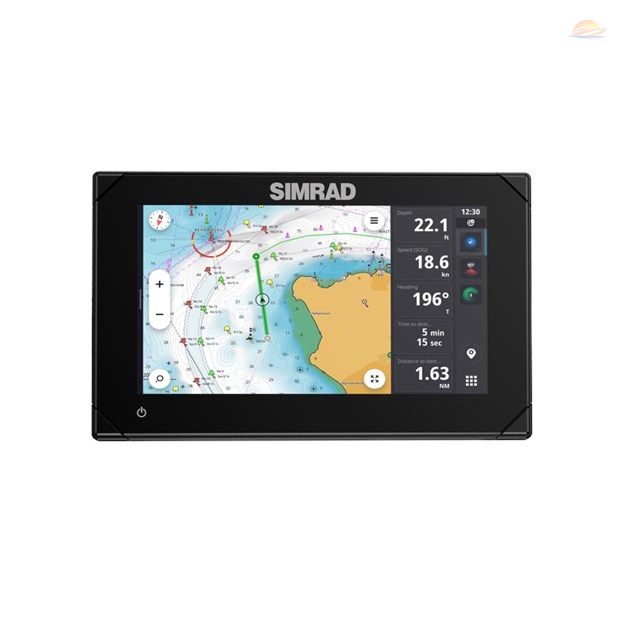

NSX 3007 COMBO SONAR/GPS WITH 3-IN-1 PROBE
-
Code:NAV-000-15368-001
-
Weight:10.000 Kgs
The Simrad NSX 3007 is a premium 7-inch fishfinder/chartplotter designed for anglers and boaters who demand advanced navigation, intuitive operation and powerful sonar performance. Supplied with the Active Imaging™ 3-in-1 transducer, it delivers CHIRP, SideScan and DownScan Imaging™ for exceptional underwater detail. Powered by the latest NEON™ operating system, NSX combines a SolarMAX™ IPS touchscreen, next-generation C-MAP® chart compatibility and seamless integration with Simrad radar and autopilot systems.
Estimated Shipping
to Veliko Tarnovo starts at
€2.76
outside Veliko Tarnovo starts at
€2.82
Quick Buy
The Simrad NSX 3007 with Active Imaging™ 3-in-1 transducer is a next-generation multifunction display combining advanced GPS navigation and professional fishfinding capabilities in a compact 7-inch format.
Its intuitive NEON™ operating system delivers fast performance, modern touchscreen controls and customizable screen layouts. The bright SolarMAX™ IPS display provides excellent visibility from every angle, even in direct sunlight and while wearing polarized sunglasses.
The included Active Imaging™ 3-in-1 transducer integrates:
- CHIRP Sonar
- SideScan Imaging™
- DownScan Imaging™
Together with FishReveal™, the system provides outstanding target separation and crystal-clear images of fish and underwater structures. Support for optional 1 kW transducers makes the NSX suitable for deeper offshore fishing.
NSX seamlessly integrates with the complete Simrad ecosystem, including:
- HALO® Radar
- Simrad Autopilot
- NMEA 2000® networking
- Ethernet connectivity
- Mercury SmartCraft®
- CZone®, Lumishore and Dometic systems.
Compatible with C-MAP® Discover X and Reveal X charts, the NSX provides high-resolution bathymetry, advanced autorouting, tides and currents, custom depth shading and regularly updated marine cartography.
Wireless connectivity through Wi-Fi and Bluetooth allows seamless synchronization with the Simrad Companion App for routes, waypoints, tracks and trip planning.
Designed for serious anglers and recreational boaters alike, the Simrad NSX 3007 delivers premium sonar technology, intuitive navigation and outstanding expandability in one compact system.
🇬🇧 Key Features
- 7" SolarMAX™ IPS HD touchscreen
- Active Imaging™ 3-in-1 transducer included
- CHIRP Sonar
- SideScan™ & DownScan Imaging™
- FishReveal™ technology
- Built-in 10 Hz GPS
- C-MAP® Discover X & Reveal X support
- Wi-Fi & Bluetooth
- Ethernet & NMEA 2000® networking
- HALO® Radar compatible
- Simrad Autopilot compatible
- Simrad Companion App support
- IPX6/IPX7 waterproof rating
- Optional 1 kW transducer support for deeper waters.
🇬🇧 Technical Specifications
| Specification | Value |
|---|---|
| Display | 7" SolarMAX™ IPS Touchscreen |
| Resolution | 1024 × 600 px |
| Brightness | >1200 nits |
| Sonar | CHIRP / SideScan / DownScan |
| Included Transducer | Active Imaging™ 3-in-1 |
| FishReveal™ | Yes |
| GPS | Internal 10 Hz |
| Chart Support | C-MAP Discover X / Reveal X |
| Ethernet | 1 Port |
| NMEA 2000 | Yes |
| Wi-Fi | Yes |
| Bluetooth | Bluetooth 4.0 |
| microSD | 1 Slot |
| Power Supply | 10–17 V DC |
| Max Power Consumption | 11.5 W |
| Waterproof Rating | IPX6 / IPX7 |
| Operating Temperature | -15°C to +55°C |
