STRUCTURE SCAN 3D PROCESSOR AND PROBE KIT
-
Code:NAV-000-12395-001
-
Weight:3.300 Kgs
STRUCTURE SCAN 3D PROCESSOR AND PROBE KIT
Experience a new level of underwater imaging with the Simrad StructureScan® 3D Module & Transducer Kit. Featuring advanced multi-beam sonar technology, the system delivers crystal-clear 3D, SideScan and DownScan Imaging™ views of underwater structures, fish and bottom contours. Scan up to 180 m (600 ft) on each side of your boat for exceptional coverage and detail.
Estimated Shipping
to Veliko Tarnovo starts at
€2.32
outside Veliko Tarnovo starts at
€2.38
Quick Buy

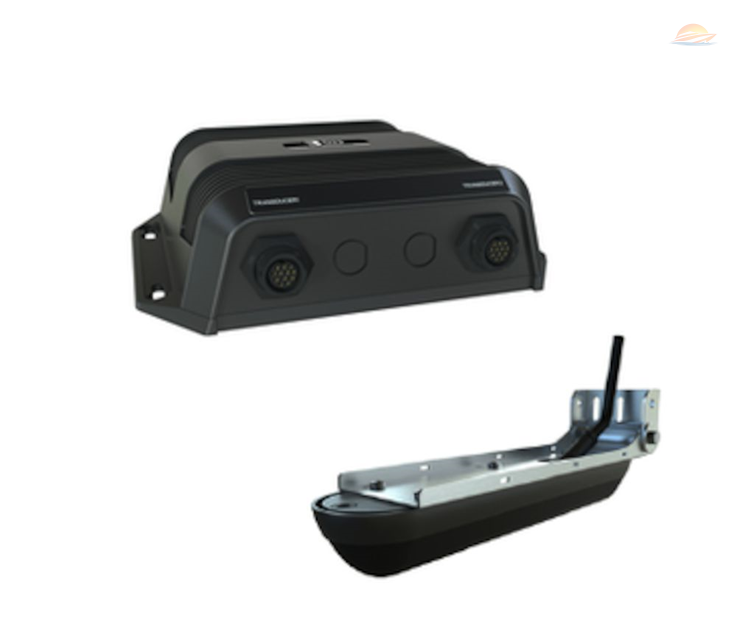

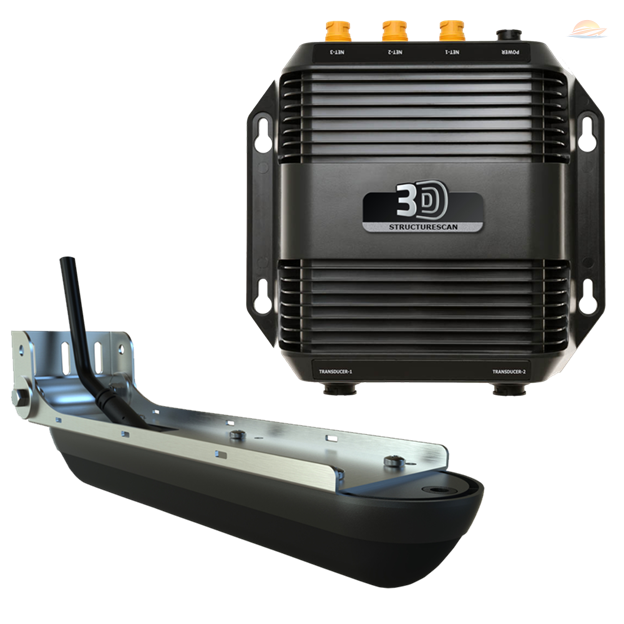

The Simrad StructureScan® 3D (NAV-000-12395-001) combines a high-performance sonar module with the dedicated StructureScan® 3D Skimmer transducer to provide realistic three-dimensional underwater imaging.
Powered by advanced multi-beam sonar technology, it creates highly detailed images of bottom contours, rock piles, submerged timber, vegetation, wrecks and fish-holding structures, helping anglers locate productive fishing areas faster and with greater confidence.
The system combines 3D Imaging, SideScan, and DownScan Imaging™ using a single transducer. Users can freely pan, tilt and rotate the 3D view for a complete understanding of underwater terrain.
Three integrated Ethernet ports simplify networking with multiple compatible Simrad multifunction displays while maintaining plug-and-play installation.
The transducer supports transom mounting and can also be installed on a jack plate or step hull using optional mounting kits, making it suitable for both new installations and system upgrades.
Key Features
- High-definition 3D underwater imaging
- Multi-Beam Sonar technology
- SideScan and DownScan Imaging™ in one transducer
- Up to 180 m (600 ft) SideScan range per side
- Pan, tilt and rotate 3D views
- Plug-and-play installation
- Three built-in Ethernet ports
- Ideal for serious anglers and professional marine applications
Technical Specifications
- Manufacturer: Simrad
- Part Number: NAV-000-12395-001
- Product Type: Sonar Module & Transducer Kit
- Technology: Multi-Beam Sonar
- Imaging Modes: 3D Imaging, SideScan, DownScan Imaging™
- Operating Frequency: 455 kHz
- Maximum SideScan Range: 180 m (600 ft) each side
- Maximum DownScan Depth: 60 m (200 ft)
- Transmit Power: 500 W RMS
- Power Supply: 12 V DC
- Typical Current Draw: 0.6 A
- Maximum Current Draw: 0.75 A
- Networking: Ethernet (3 ports)
- Waterproof Rating: IPX7
- Mounting Options: Transom, Jack Plate, Step Hull
- Compatible Displays: Simrad NSS evo2/evo3, NSO evo2/evo3 compatible systems
