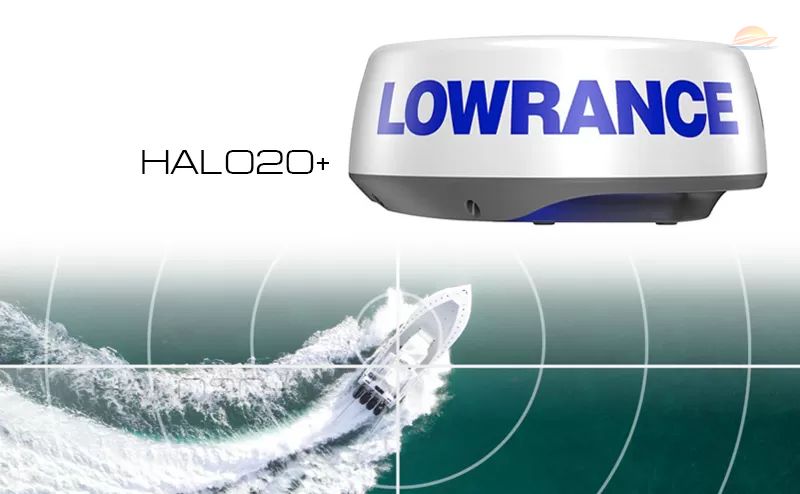

The Lowrance HALO20+ combines advanced pulse compression radar technology with intelligent signal processing to provide outstanding target detection from close quarters to long range.

With VelocityTrack™ Doppler technology, approaching and receding targets are instantly identified using intuitive colour coding, greatly improving collision avoidance in busy waterways.

The radar's industry-leading 60 RPM rotation speed provides near real-time updates at close range, allowing boaters to detect fast-moving vessels and obstacles with exceptional clarity.

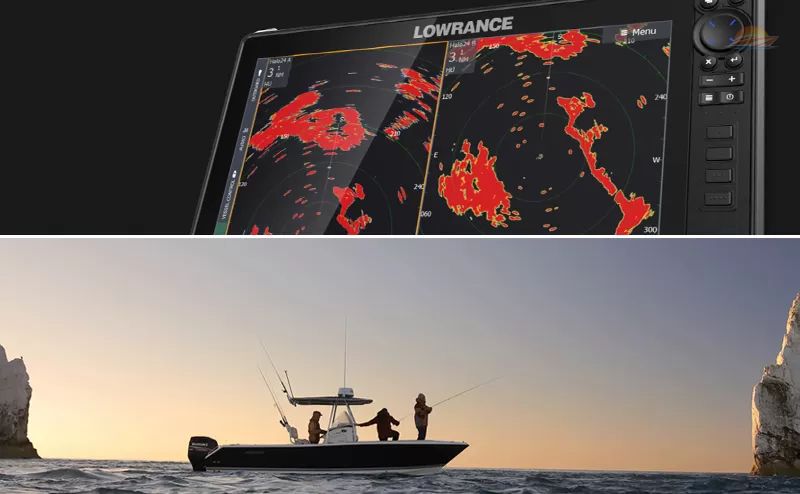

Dual Range operation enables simultaneous monitoring of short and long distances, while AutoTrack™ automatically detects, prioritises and tracks radar targets without manual setup.

InstantOn™ technology allows the radar to start within seconds from standby, making it ready whenever you need it.

Designed for demanding anglers and recreational boaters alike, HALO20+ offers reliable performance in harbour, offshore, weather and bird detection modes.

Key Features

• Up to 36 NM detection range
• Pulse Compression radar technology
• VelocityTrack™ Doppler target identification
• AutoTrack™ automatic target tracking
• Dual Range simultaneous viewing
• Ultra-fast 60 RPM rotation
• InstantOn™ startup
• Beam sharpening for enhanced target separation
• Harbour, Offshore, Weather & Bird modes
• MARPA target tracking support
• Low power consumption

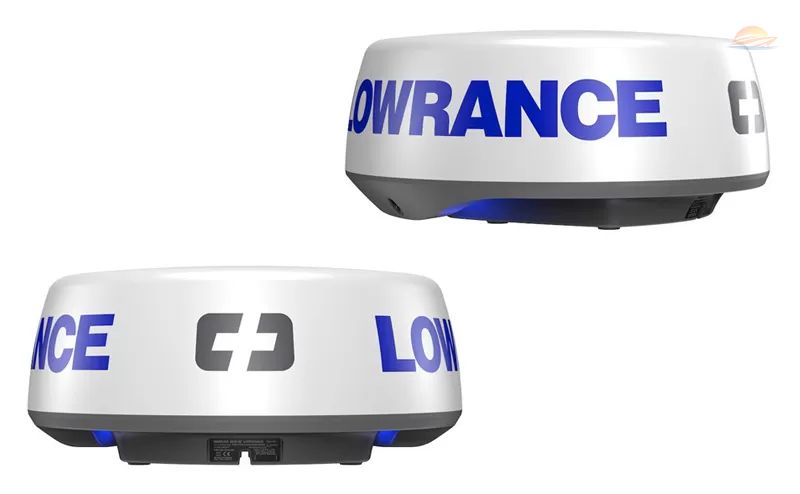

• Compact 20-inch dome antenna

Technical Specifications

• Brand: Lowrance
• Model: HALO20+
• Part Number: NAV-000-14543-001
• Radar Type: Pulse Compression Dome Radar
• Maximum Range: 36 NM
• Minimum Range: approx. 50 m
• Dome Size: 20 in (510 mm)
• Rotation Speed: up to 60 RPM
• VelocityTrack™ Doppler: Yes
• Dual Range: Yes
• AutoTrack™: Yes
• MARPA: Yes
• Radar Modes: Harbour, Offshore, Weather, Bird, Custom
• Supply Voltage: 10.5–31.2 V DC
• Power Consumption: Typical 20 W / Max 29 W
• Waterproof Rating: IPX6
• Operating Temperature: -25°C to +55°C
• Weight: approx. 5.9 kg
