ActiveTarget™ 2 XL SYSTEM INCLUDES PROBE, STANDS AND PROCESSOR
-
Code:NAV-000-16488-001
-
Weight:3.460 Kgs

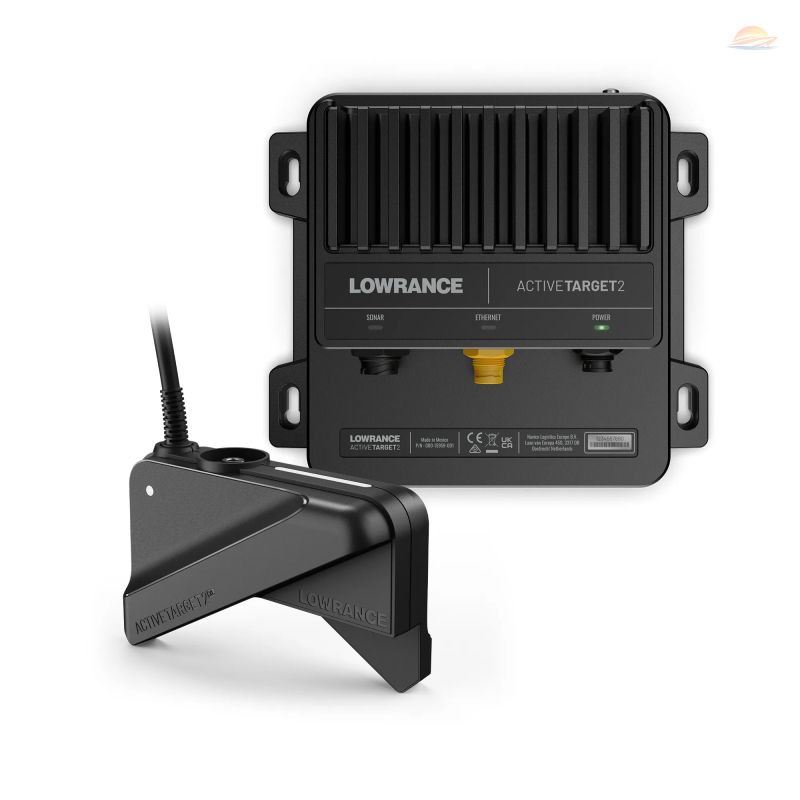

Lowrance ActiveTarget™ 2 XL System with Transducer, Module and Mounts
The Lowrance ActiveTarget™ 2 XL Live Sonar System delivers crystal-clear real-time imaging of fish, structure and lure movement.
Featuring the new XL transducer, it provides 180° surface-to-surface coverage in Forward XL, Down XL and Scout XL modes from a single transducer, helping anglers locate fish faster and fish more efficiently.
Estimated Shipping
to Veliko Tarnovo starts at
€2.32
outside Veliko Tarnovo starts at
€2.38
Quick Buy
The Lowrance ActiveTarget™ 2 XL is the latest evolution of Live Sonar technology, delivering the clearest and most complete underwater view ever produced by Lowrance.
The new XL transducer offers exceptional image clarity while displaying fish behavior, underwater structure and lure action in real time. With 180° surface-to-surface live sonar coverage, anglers gain an expanded field of view without blind spots.
Instant switching between Forward XL and Down XL is performed directly from the display, eliminating the need to physically reposition the transducer. Scout XL mode provides an ultra-wide forward-looking perspective, while integrated angle reference markers simplify setup in both shallow and deep water.
For anglers seeking maximum coverage, pairing two ActiveTarget™ 2 XL systems with HDS PRO unlocks the industry's first Scout Live 360° real-time sonar around the boat.
The system is fully compatible with HDS PRO, HDS LIVE, HDS Carbon and Elite FS displays and also offers an easy upgrade path for existing ActiveTarget™ 2 users.
Key Features
- Real-time Live Sonar imaging
- 180° surface-to-surface coverage
- Forward XL
- Down XL
- Scout XL viewing modes
- Best-in-class image resolution
- Instant view switching
- Real-time fish and lure tracking
- Scout Live 360° capability (dual systems with HDS PRO)
- Easy installation
- Ethernet connectivity
Technical Specifications
| Specification | Value |
|---|---|
| Model | ActiveTarget™ 2 XL |
| Part Number | NAV-000-16488-001 |
| Type | Live Sonar System |
| Coverage | 180° Surface-to-Surface |
| Sonar Modes | Forward XL / Down XL / Scout XL |
| Supply Voltage | 10.8–31.2 V DC |
| Typical Power Consumption | 1.5 A |
| Maximum Power Consumption | 2.2 A |
| Ethernet | 100 Mbps |
| Waterproof Rating | IP67 |
| Transducer Cable | 25 ft (7.6 m) |
| Mounting | Shaft Mount / Bracket Mount |
| Compatible Displays | HDS PRO, HDS LIVE, HDS Carbon, Elite FS |
What's in the Box
- ActiveTarget™ 2 XL Transducer
- ActiveTarget™ 2 Sonar Module
- Mounting Bracket
- 15 ft Ethernet Cable
- Power Cable
- Mounting Hardware
- User Documentation
