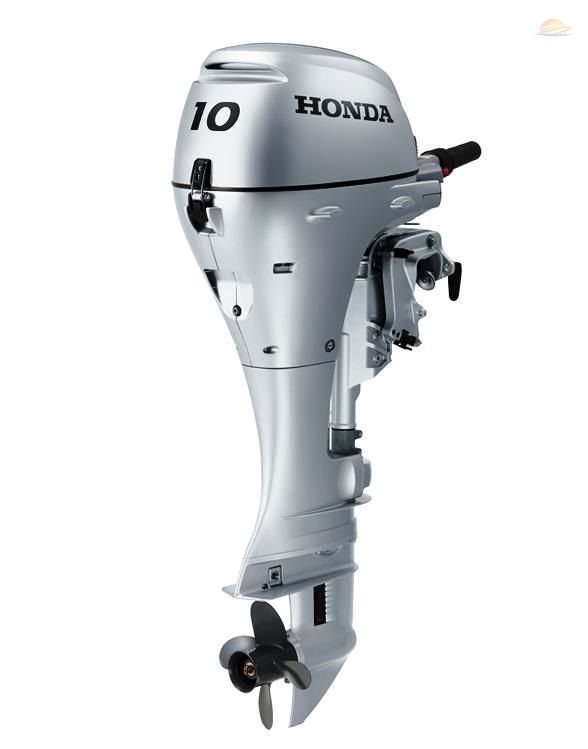

Honda BF10DK2LHSU – 10 HP, 12 A Alternator
-
Code:BF10DK2LHSU
-
Weight:48.000 Kgs
Honda BF10DK2LHSU – 10 HP, Long Shaft, Tiller Control, Electric Start & 12 A Alternator
The Honda BF10DK2LHSU is a compact and reliable 10 HP four-stroke outboard designed for small to medium-sized boats. Its 222 cc twin-cylinder engine provides smooth operation, low vibration and excellent everyday usability.
The LHSU version features a long shaft (L) and tiller steering, making it suitable for boats with a transom designed for a long-shaft outboard. The electric starter provides convenient starting, while a manual recoil starting system is also available.
A key advantage of this model is its 12 A charging alternator, designed to maintain the onboard battery and support electrical equipment such as fishfinders, GPS/navigation systems, lighting and compatible 12 V accessories.
The BF10DK2LHSU is well suited to fishing boats, inflatable boats, aluminium boats and small motorboats where a 10 HP engine and long-shaft configuration are specified by the boat manufacturer. Its tiller control also makes it an excellent choice for boats without a remote steering console.
Key equipment and features: electric and manual starting, tiller steering, 12 A battery-charging alternator, convenient F-N-R gear selection and shallow-water operation.
Estimated Shipping
to Veliko Tarnovo starts at
€13.88
outside Veliko Tarnovo starts at
€18.36
Quick Buy
Honda BF10DK2LHSU – Compact 10 HP Outboard with Practical Equipment
The Honda BF10DK2LHSU combines compact dimensions, proven four-stroke technology and practical equipment for recreational and fishing use. It features a 2-cylinder, 4-stroke OHC engine with a displacement of 222 cc, delivering 10 HP with a full-throttle operating range of 5,000–6,000 rpm.
Tiller Control & Starting
The BF10DK2LHSU features tiller steering, providing direct control of steering and throttle without requiring a remote control console. The transmission provides the standard Forward-Neutral-Reverse (F-N-R) positions.
An electric starter makes everyday operation quick and convenient, while the additional manual recoil starting system provides extra flexibility.
Long-Shaft Configuration
This model features an L – long shaft configuration and should be matched to the transom height and design specified by the boat manufacturer. Correct shaft length is essential for proper cooling, propulsion efficiency and boat handling.
12 A Charging System
A major advantage of this configuration is its 12 A alternator with voltage regulator. It can maintain the onboard battery and support compatible electrical equipment such as:
- fishfinders and sonar;
- GPS and navigation electronics;
- navigation and onboard lighting;
- compatible 12 V accessories.
Engine Technology & Protection
The BF10DK2LHSU uses digital PGM-IG ignition, automatic start enrichment and water cooling for reliable operation. Engine protection features include an over-rev limiter and operating monitoring systems, while Honda's corrosion-protection system supports long-term marine use.
A manual tilt system with a shallow-water position makes operation easier when approaching shore or navigating shallow areas.
Recommended Applications
The Honda BF10DK2LHSU is a practical choice for fishing boats, inflatables, RIBs, aluminium boats and small motorboats designed for a long-shaft outboard. Depending on the boat specification, it can be used as a primary engine on smaller craft or as an auxiliary outboard on compatible larger boats.
Before choosing the engine, always check the boat manufacturer's specifications for maximum permitted horsepower, required transom/shaft length, maximum engine weight and installation requirements.
Key Specifications
Model: Honda BF10DK2LHSU
Power: 10 HP
Engine: 4-stroke OHC, 2-cylinder
Displacement: 222 cc
Full-throttle range: 5,000–6,000 rpm
Steering: Tiller
Shaft: Long (L)
Starting: Electric + manual recoil
Alternator: 12 A battery-charging system
Gear selection: F-N-R (Forward / Neutral / Reverse)
Ignition: Digital PGM-IG
Cooling: Water-cooled
Fuel system: Carburettor
Tilt: Manual, with shallow-water position
Who it’s for
For boats compatible with a 10 HP long-shaft, tiller-steered outboard where electric starting is desired. Check the boat’s permitted engine weight and installation requirements.
FAQ
How is the Honda BF10DK2LHSU steered?
This version has tiller steering, not remote steering from a console.
How is the engine started?
The LHSU version offers electric and manual starting. Electric starting requires a suitable battery selected according to the engine owner’s manual.
Which shaft length does it have?
It has a long shaft (L). Check transom height and maximum permitted engine power and weight in the boat documentation. It is not a direct replacement for a short-shaft engine.
What does the 12 A charging rating mean?
This is a charging-system rating, not a battery capacity. When selecting a fishfinder, lights and other accessories, consider their combined electrical demand and operating conditions.
What should I check before ordering?
Provide your exact boat model and SKU BF10DK2LHSU. Confirm delivery contents, the battery and installation accessories; do not assume they are included simply because the engine has electric starting.
