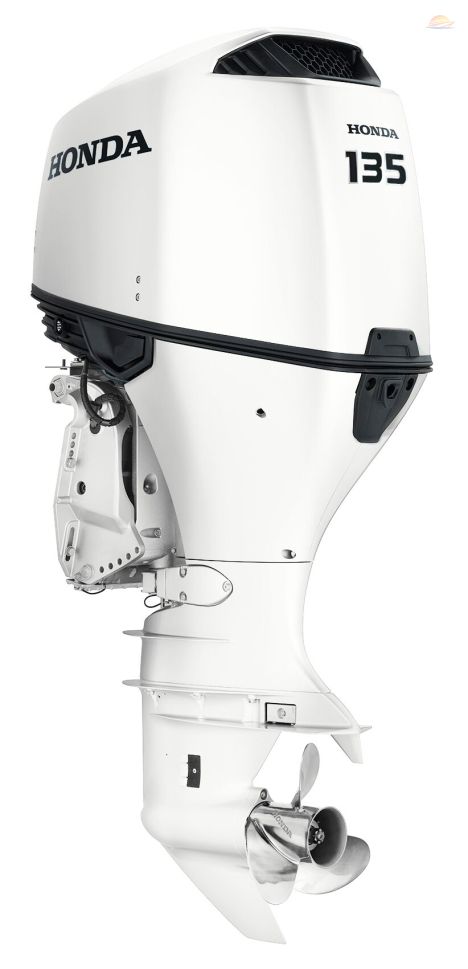

Honda BF135DLRUNH565 White
-
Code:BF135DLRUNH565
-
Weight:214.000 Kgs
The Honda BF135DLRUNH565 is a dependable 135 HP four-stroke outboard combining strong thrust, smooth operation and efficient fuel consumption. Finished in NH565 white, it is suitable for leisure cruising, sport fishing, water sports and professional use.
The LRU version features a 508 mm (20″) long L shaft, electric starting and mechanical remote throttle and shift control. Its configuration includes electro-hydraulic Power Trim & Tilt and a 12 V/40 A alternator for battery charging and onboard electrical equipment.
It is suitable for RIBs, fibreglass powerboats, fishing boats and leisure craft with 20″ transoms, typically around 5.5–7 m long. The remote-control box, cables, gauges, steering system and propeller must be matched to the boat and the agreed supply package.
Quick Buy
The Honda BF135DLRUNH565 is a 135 HP four-stroke outboard designed for boats requiring dependable thrust, comfortable operation and efficient cruising performance. Its NH565 white finish is particularly suitable for light-coloured and modern boat designs.
The 2354 cc inline four-cylinder engine features a 16-valve DOHC cylinder head and Honda PGM-FI electronic fuel injection. This configuration provides dependable starting, smooth acceleration and consistent performance under different operating loads.
The LRU version has a 508 mm (20″) long shaft, standard propeller rotation and mechanical remote control. Throttle and gear selection are operated through a remote-control lever and conventional mechanical cables. Electric starting enables convenient operation from the helm.
Electro-hydraulic Power Trim & Tilt adjusts the engine angle for different speeds, loads and water conditions. Correct trim helps the boat reach plane efficiently, improves stability and supports economical fuel consumption. The 12 V/40 A alternator charges the starting battery and provides capacity for standard navigation instruments, lighting and other onboard equipment.
Key specifications:
- Output: 135 HP / approximately 99.3 kW
- Engine: four-stroke, inline four-cylinder
- Displacement: 2354 cc
- Valve train: DOHC, 16 valves
- Fuel system: PGM-FI electronic fuel injection
- Full-throttle operating range: 5000–6000 rpm
- Gear ratio: 2.14:1
- Gear selection: forward–neutral–reverse
- Propeller rotation: standard
- Shaft: long L, 508 mm / 20″
- Controls: mechanical remote control
- Starting system: electric
- Trim system: Power Trim & Tilt
- Alternator: 12 V/40 A
- Cooling: water-cooled with thermostat
- Colour: white, NH565
Applications and additional equipment
The BF135DLRUNH565 is suitable for RIBs, powerboats, fishing boats and leisure craft with transoms designed for a 20″ shaft, typically around 5.5–7 m long. Final compatibility depends on the boat’s maximum power rating, transom height, hull design, weight and expected load.
Installation may require a remote-control box, mechanical control cables and wiring harness, gauges, steering system, battery, fuel tank and lines, fuel/water separator and a correctly sized aluminium or stainless-steel propeller. Exact package contents should be confirmed before ordering.
Who it’s for
For boats rated for a 135 HP engine with a compatible transom and permitted engine weight. Configuration: long L shaft; remote steering. Check the exact variant before ordering.
FAQ
Which configuration does the Honda BF135DLRUNH565 offer?
135 HP; long L shaft; remote steering; electric starting.
Are throttle and shift electronic or mechanical?
This version uses mechanical remote throttle and shift. Select compatible controls and cables for the installation.
Will it fit my boat?
Check maximum permitted engine power and weight, transom height and installation requirements in the boat documentation. Hull length alone does not establish compatibility.
What should I confirm for installation?
Provide the boat model and exact product code. Confirm the propeller and fuel system, remote controls, cables, instruments and steering system, plus the required starting battery. Delivery contents must be checked for the specific SKU.
How should the propeller be selected?
Selection depends on hull design, loaded boat weight and the engine operating range. Do not choose diameter and pitch by horsepower alone; confirm suitability for the specific installation.
Which details should I send before ordering?
Provide your boat model, rated maximum engine power and weight, transom height and preferred steering arrangement. Refer to the selected variant and order confirmation for availability and lead time.
