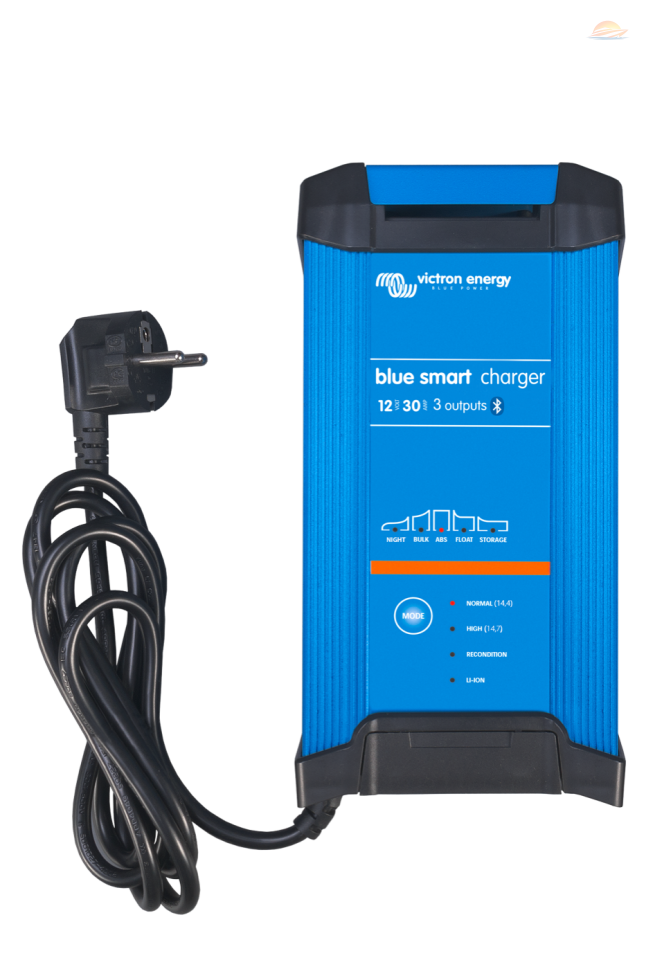

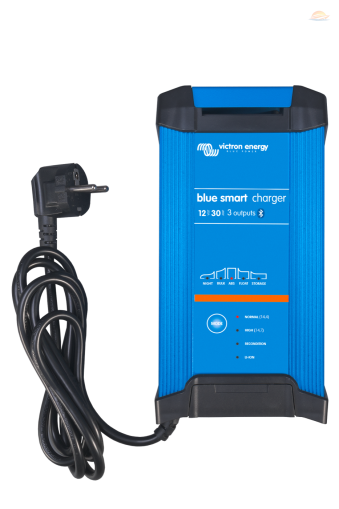

Victron Blue Smart IP22 12/30(3) 230 V – battery charger
-
Code:BPC123048002
-
Weight:1.300 Kgs
Estimated Shipping
to Veliko Tarnovo starts at
€1.66
outside Veliko Tarnovo starts at
€1.72
Quick Buy
Victron Blue Smart IP22 12/30(3) 230 V – battery charger
Mains charger for 12 V batteries, 30 A total current and 3 outputs; shared total current, not per-output current. Bluetooth/VictronConnect; IP22 enclosure for a protected location.
Specifications
- Battery: 12 V
- Normal charge current: 30 A total
- 3 outputs; shared total current, not per-output current
- Input: 180–265 V AC, 45–65 Hz
- NIGHT/LOW: up to 15 A
- Absorption NORMAL/HIGH/LI-ION: 14.4/14.7/14.2 V
- IP22; 235 × 108 × 65 mm; 1.3 kg
- Full rated output up to 40 °C
- Adaptive charging; configuration through VictronConnect
Installation and accessories
Install in a dry, ventilated, protected location as instructed. IP22 is not suitable for immersion or direct water jets. Select DC cables and fuses separately for the wiring design. Remote sensing through Smart Battery Sense/a monitor is optional; VE.Smart Networking availability depends on serial series HQ2024xxxxx and later.
Genesis Fishing offers equipment for onboard electrical systems in Bulgaria. Check voltage, wiring and required accessories before ordering.
Who it’s for
For boat owners and installers with 12 V batteries and suitable AC supply. Genesis Fishing, Bulgaria.
Key features
Battery: 12 V; Normal charge current: 30 A total; 3 outputs; shared total current, not per-output current; Input: 180–265 V AC, 45–65 Hz; NIGHT/LOW: up to 15 A; Absorption NORMAL/HIGH/LI-ION: 14.4/14.7/14.2 V; IP22; 235 × 108 × 65 mm; 1.3 kg; Full rated output up to 40 °C; Adaptive charging; configuration through VictronConnect
Unique differentiators
Bluetooth configuration, adaptive charging and quiet charging modes; 3 outputs; shared total current, not per-output current.
Why this product
For controlled mains charging in a protected onboard compartment using the correct battery profile.
FAQ
What battery voltage is it for?
A 12 V battery system. Input is 180–265 V AC; it is not an alternator-fed DC-DC charger.
Is the current specified per output?
30 A is the charger’s total rated current. The three outputs share it; they are not three independent 30 A chargers.
Which battery mode should I use?
Choose NORMAL, HIGH or LI-ION according to the battery manufacturer’s voltage requirements. Do not use RECONDITION for lithium batteries.
Can it be installed on an exposed deck?
No. IP22 requires a protected location; provide ventilation and follow the manual.
What do NIGHT and LOW do?
They limit current to 15 A and stop the fan. NIGHT ends automatically after 8 hours; LOW is ended manually.
Are independent battery profiles available?
The charging profile is common to the outputs. Connect only batteries with the appropriate same nominal voltage and compatible charge requirements.
What accessories are needed?
Suitable DC cables and fuses for the installation. An external sensor/monitor for remote sensing is separate and is not required for basic charging.
