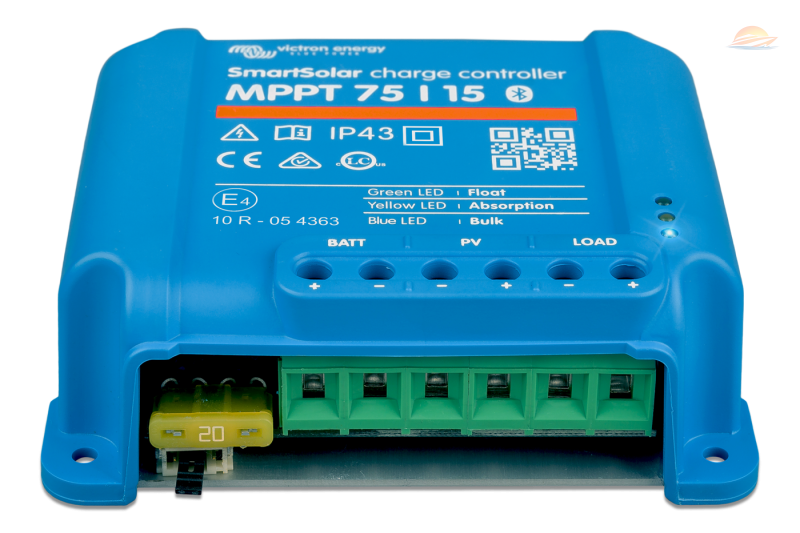

Victron SmartSolar MPPT 75/15 – solar charge controller
-
Code:SCC075015060R
-
Weight:0.500 Kgs
Estimated Shipping
to Veliko Tarnovo starts at
€1.66
outside Veliko Tarnovo starts at
€1.72
Quick Buy
Victron SmartSolar MPPT 75/15 – solar charge controller
MPPT solar charge controller for 12/24 V batteries, with charge current up to 15 A, Bluetooth and VE.Direct. Maximum PV open-circuit voltage 75 V.
Specifications
- Battery: 12/24 V
- Rated charge current: 15 A
- PV open-circuit voltage: maximum 75 V
- PV short-circuit current: maximum 15 A
- Nominal PV power: 220 W / 12 V; 440 W / 24 V
- LOAD output: 15 A
- IP43 electronics; IP22 connection area
- H × W × D: 100 × 113 × 40 mm
- Weight: 0.5 kg
- Full rated output up to 40 °C
Installation and accessories
Install in a dry, protected location with cooling. Size panels for cold-condition Voc and Isc; PV limits are not battery voltage or current. PV voltage must exceed battery voltage by 5 V to start. Cables, fuses, panels and a VE.Direct cable to GX are separate accessories. Select the charging profile for the battery and its BMS.
Genesis Fishing offers equipment for onboard electrical systems in Bulgaria. Check voltage, wiring and required accessories before ordering.
Who it’s for
For onboard solar installations with correctly sized PV panels and batteries. Genesis Fishing, Bulgaria.
Key features
Battery: 12/24 V; Rated charge current: 15 A; PV open-circuit voltage: maximum 75 V; PV short-circuit current: maximum 15 A; Nominal PV power: 220 W / 12 V; 440 W / 24 V; LOAD output: 15 A; IP43 electronics; IP22 connection area; H × W × D: 100 × 113 × 40 mm; Weight: 0.5 kg; Full rated output up to 40 °C
Unique differentiators
Bluetooth configuration and monitoring, VE.Direct and a separately controlled LOAD output.
Why this product
For using onboard solar panels within the specified PV and battery limits.
FAQ
What do the model numbers mean?
75 V is maximum PV open-circuit voltage; 15 A is rated battery charge current.
Which battery voltage does it support?
For 12/24 V. Check the VictronConnect setting before operation.
Can any solar panel be connected?
No. Check cold-condition Voc no higher than 75 V and Isc no higher than 15 A, array wiring and nominal power.
Can it be mounted wet on deck?
Do not assume so. Electronics are IP43; the connection area is IP22. Use a protected, ventilated installation.
What is the LOAD limitation?
15 A. Do not connect large loads directly above this limit.
Does it support different batteries?
The charge algorithm is configurable. Use the battery’s parameters; the controller does not replace a lithium BMS.
What is needed separately?
Panels, properly sized cables and fuses. A GX device and VE.Direct cable are separate if integration is needed.
