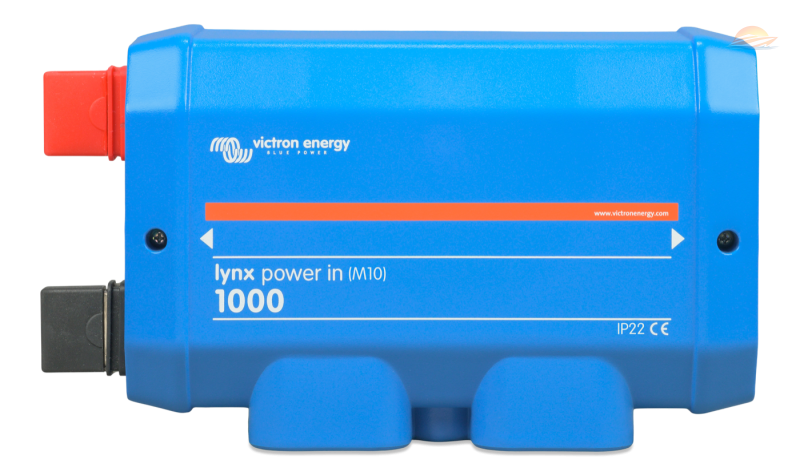

Victron Lynx Power In M10 – DC distribution module

For owners and installers of onboard electrical systems. Genesis Fishing, Bulgaria.

9–60 V DC; 1000 A continuous busbar rating; M10 power busbars; IP22; ABS enclosure; 290 × 170 × 80 mm; 2.1 kg; Operating temperature: −40 to +60 °C; 4 DC connections; no built-in fuses

Modular positive and negative DC busbars with four connections for battery integration into a Lynx system. No built-in fuses.

Plan DC distribution, fuses and cables according to the manual. Install in a protected compartment. Separate suitable branch protection is required.

What voltage is it for?
9–60 V DC. Check the entire system voltage and every connected component.

Does 1000 A apply to every branch?
No. It is the continuous busbar rating. Size each branch for its cable, load and protection.

Is it compatible with M8 Lynx modules?
This SKU uses M10 busbars. Choose suitable M10 modules and cable lugs; do not assume M8/M10 connections are interchangeable.

Can it be mounted on an exposed deck?
No. IP22 requires a protected location; follow the manual and connection torque instructions.

Does it replace a BMS?
No. It is a distribution module. Lithium batteries require a suitable BMS; this module does not choose a charge profile.

Does it include fuses or current measurement?
No. Provide appropriate external branch protection. Current measurement requires a separate shunt/monitor.

What is purchased separately?
DC cables, suitable M10 lugs, fuses and other Lynx modules for the design.
