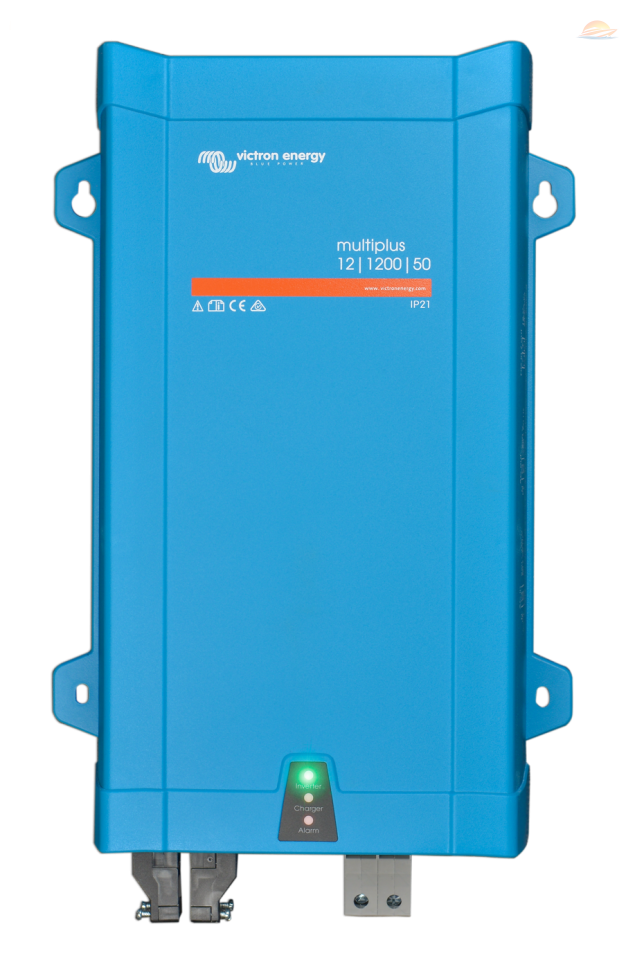

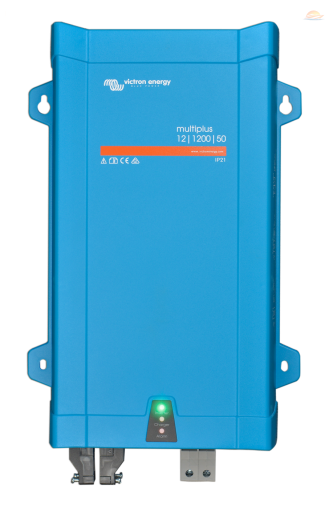

Victron MultiPlus 12/1200/50-16 230 V – inverter/charger
-
Code:PMP122120000
-
Weight:8.200 Kgs
Estimated Shipping
to Veliko Tarnovo starts at
€2.76
outside Veliko Tarnovo starts at
€2.82
Quick Buy
Victron MultiPlus 12/1200/50-16 230 V – inverter/charger
Pure sine wave inverter for a 12 V battery, 1200 VA / 1000 W at 25 °C, 50 A charger and 16 A AC transfer switch. 230 V AC output.
Specifications
- DC input: 9.5–17 V
- Continuous: 1200 VA / 1000 W at 25 °C; 900 W at 40 °C
- Peak power: 2400 W
- AC output: 230 V ±2%, 50 Hz
- AC input: 187–265 V, 45–65 Hz
- Charge current: 50 A at ambient temperature up to 25 °C; 1 A starter-battery trickle output
- PowerControl / PowerAssist; VE.Bus
- IP21; 406 × 250 × 100 mm; 8.2 kg
Installation and accessories
Install in a dry, ventilated compartment. Size the battery, DC cables, fuses and AC protection for the manual and loads. A lithium system requires a compatible BMS and suitable configuration. Computer configuration requires a separate MK3-USB; GX/VE.Bus cables and Bluetooth adapter are separate accessories.
Genesis Fishing offers equipment for onboard electrical systems in Bulgaria. Check voltage, wiring and required accessories before ordering.
Who it’s for
For owners and installers of onboard electrical systems. Genesis Fishing, Bulgaria.
Key features
DC input: 9.5–17 V; Continuous: 1200 VA / 1000 W at 25 °C; 900 W at 40 °C; Peak power: 2400 W; AC output: 230 V ±2%, 50 Hz; AC input: 187–265 V, 45–65 Hz; Charge current: 50 A at ambient temperature up to 25 °C; 1 A starter-battery trickle output; PowerControl / PowerAssist; VE.Bus; IP21; 406 × 250 × 100 mm; 8.2 kg
Unique differentiators
Pure sine wave inverter for a 12 V battery, 1200 VA / 1000 W at 25 °C, 50 A charger and 16 A AC transfer switch. 230 V AC output.
Why this product
Install in a dry, ventilated compartment. Size the battery, DC cables, fuses and AC protection for the manual and loads. A lithium system requires a compatible BMS and suitable configuration. Computer configuration requires a separate MK3-USB; GX/VE.Bus cables and Bluetooth adapter are separate accessories.
FAQ
What does 1200 mean?
1200 is the apparent power rating in VA. Continuous active power is 1000 W at 25 °C and 900 W at 40 °C. Also check the load starting current.
Is it for a 24 V battery?
No. This model uses a 12 V battery with a 9.5–17 V DC range. Its load output is 230 V AC.
How does it work with shore power?
The AC transfer switch is rated 16 A. PowerControl limits AC source current, while PowerAssist can supplement it from the battery when correctly configured.
Can it use a lithium battery?
The charging profile and BMS control must match the particular battery. Compatibility with every lithium battery cannot be assumed.
Is Bluetooth built in?
No. Bluetooth monitoring/control uses a separate VE.Bus Smart dongle. MK3-USB is a separate configuration interface; Cerbo GX is a separate system controller.
Can it be installed outdoors?
IP21 requires a dry, protected location. Provide cooling and proper AC/DC protection.
