Victron Smart Battery Sense Long Range – battery sensor
-
Code:SBS050150200
-
Weight:0.040 Kgs
Estimated Shipping
to Veliko Tarnovo starts at
€1.66
outside Veliko Tarnovo starts at
€1.72
Quick Buy

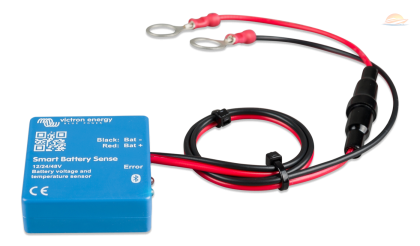

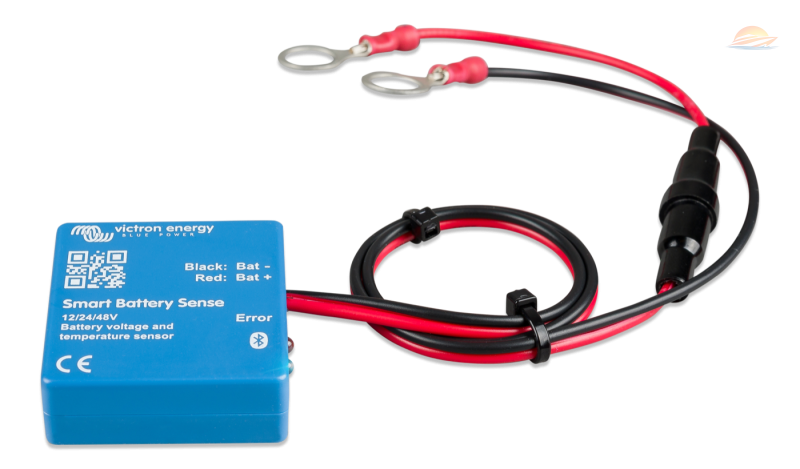

Victron Smart Battery Sense Long Range – battery sensor
Wireless battery voltage and temperature sensor. Sends measurements to compatible Victron chargers through VE.Smart Networking.
Specifications
- SKU: SBS050150200; Long Range
- Operating voltage: 8–60 V
- For 12/24/48 V battery systems within the stated range
- Measures voltage and temperature; does not measure charge current
- Bluetooth Smart / VE.Smart Networking
- Operating temperature: −10 to +60 °C
Installation and accessories
Connect the pre-fitted eyelets to the battery terminals and attach the sensor to the battery case as instructed. An inline fuse and self-adhesive mounting are provided. Check charger compatibility and version in VE.Smart Networking. Do not add a redundant sensing source to GX/BMV-controlled systems. Protect the device and connections from water; no unverified IP rating or guaranteed wireless range is claimed.
Genesis Fishing offers equipment for onboard electrical systems in Bulgaria. Check voltage, wiring and required accessories before ordering.
Who it’s for
For onboard battery systems with a compatible charger needing sensing directly at the battery. Genesis Fishing, Bulgaria.
Key features
SKU: SBS050150200; Long Range; Operating voltage: 8–60 V; For 12/24/48 V battery systems within the stated range; Measures voltage and temperature; does not measure charge current; Bluetooth Smart / VE.Smart Networking; Operating temperature: −10 to +60 °C
Unique differentiators
Sensing at battery terminals and case; wireless transmission to a compatible VE.Smart network.
Why this product
For external voltage and temperature data when the charging system does not already receive those measurements.
FAQ
Is it a charger or state-of-charge monitor?
No. It measures voltage and temperature; it does not charge, measure current or calculate state of charge like a shunt monitor.
What voltage does it support?
Operating range is 8–60 V, for 12/24/48 V systems within those limits.
Does it work with every Victron charger?
No. Check the particular model and version in the VE.Smart Networking compatibility list.
How does it help different battery types?
A compatible charger uses temperature and voltage according to its own charge profile. The sensor has no charging modes and does not replace a lithium BMS.
Is it needed with BMV or GX?
It may be redundant or unsuitable as a second sensing source. Check the design; BMV with a temperature sensor or GX/DVCC may already supply the data.
What range does Long Range guarantee?
The name identifies the version. No fixed distance is promised: metal, placement and obstacles affect Bluetooth.
Where is it installed, and can it get wet?
On the battery case as instructed, with protected connections. The referenced specification provides no confirmed IP rating for a watertightness claim.
