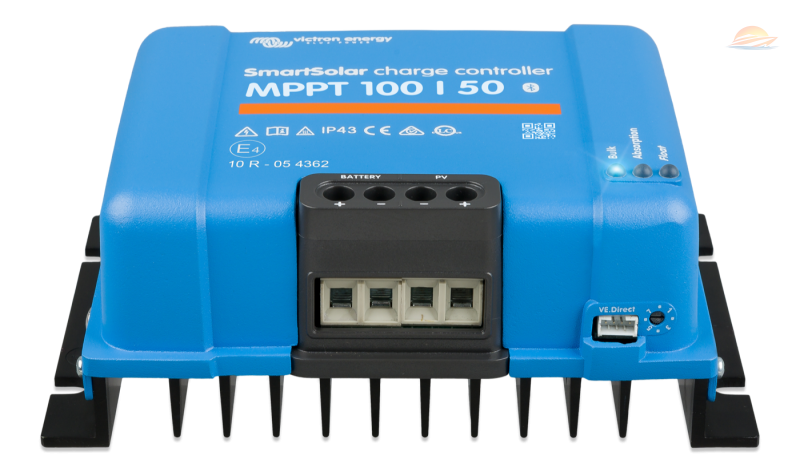

Victron SmartSolar MPPT 100/50 – solar charge controller

For owners and installers of onboard electrical systems. Genesis Fishing, Bulgaria.

Battery: 12/24 V, automatic selection; Rated charge current: 50 A; Nominal PV power: 700 W / 1400 W at 12 V / 24 V; Maximum PV Voc: 100 V; maximum PV short-circuit current: 60 A; Startup: PV > Vbat + 5 V; afterwards PV > Vbat + 1 V; Bluetooth/VictronConnect; VE.Direct; IP43 electronics / IP22 connection area; 130 × 186 × 70 mm; 1.3 kg; terminals up to 16 mm²; −30 to +60 °C; full current to 40 °C

MPPT controller for 12/24 V batteries, charging up to 50 A, Bluetooth and VE.Direct. Maximum PV Voc 100 V; nominal array 700 W at 12 V / 1400 W at 24 V.

Check PV Voc at the lowest expected temperature and array short-circuit current. Connect the battery and configure its charging profile as instructed. Panels, cables, fuses, GX/VE.Direct cable and external sensor are separate. Install in a protected, ventilated compartment.

Does 100/50 mean a 100 V battery?
No. 100 V is the PV open-circuit voltage limit and 50 A is charge current. Battery voltage is 12 or 24 V, not 48 V.

Which solar panels can be used?
Nominally 700 W at 12 V or 1400 W at 24 V. PV Voc must never exceed 100 V, including in cold weather; PV short-circuit current is limited to 60 A.

Can it charge lithium batteries?
Yes, with the correct profile and compatible BMS control for the battery. Do not use equalisation for lithium batteries.

Does it have a separate power LOAD output?
This model has no separate LOAD terminals. Design load wiring and protection separately; virtual functions do not add a power output.

How does it connect to GX?
Use a separate VE.Direct cable to a compatible GX. Bluetooth/VictronConnect supports local configuration without GX.

Is the entire controller waterproof?
Electronics are IP43 and the connection area is IP22. It is not for exposed decks or immersion; protect the connections.
